​Key ​Value (​K​V) ​Store

Build stateful workflows with the KV Store.

Overview

Kestra's workflows are stateless by design. All workflow executions and task runs are isolated from each other by default to avoid any unintended side effects. When you pass data between tasks, you do so explicitly by passing outputs from one task to another and that data is stored transparently in Kestra's internal storage. This stateless execution model ensures that workflows are idempotent and can be executed anywhere in parallel at scale.

However, in certain scenarios, your workflow might need to share data beyond passing outputs from one task to another. For example, you might want to persist data across executions or even across different workflows. This is where the Key Value (KV) store comes into play.

KV Store allows you to store any data in a convenient key-value format. You can create them directly from the UI, via dedicated tasks, Terraform or through the API.

The KV store is a powerful tool that allows you to build stateful workflows and share data across executions and workflows.

How KV Store fits into Kestra's architecture

Kestra's architecture has been designed to offer a transparent separation between the orchestration and data processing capabilities. Kestra's Executor is responsible for executing tasks and workflows without directly interacting with the user's infrastructure. The Executor relies on Workers, which are stateless processes that carry out the computation of runnable tasks and polling triggers. For privacy reasons, workers are the only components that interact with the user's infrastructure, including the internal storage and external services.

Given that data persisted in the KV Store might contain sensitive information, the KV Store has been built on top of Kestra's internal storage. This ensures that all values are stored in the your private cloud storage bucket, and Kestra's database only contains metadata about the object, such as the key, file URI, any attached metadata about the object like TTL, creation date, last updated timestamp, etc.

In short, the KV Store gives you full control and privacy over your data, and Kestra only stores metadata about the KV pairs.

Keys and Values

Keys are arbitrary strings. Keys can contain:

• characters in uppercase and or lowercase
• standard ASCII characters

Values are stored as ION files in Kestra's internal storage. Values are strongly typed, and can be of one of the following types:

• string
• number
• boolean
• datetime
• date
• duration
• JSON.

For each KV pair, you can set a Time to Live (TTL) to avoid cluttering your storage with data that may only be relevant for a limited time.

Namespace binding

Key value pairs are defined at a namespace level and you can access them from the namespace page in the UI in the KV Store tab.

You can create and read KV pairs across namespaces as long as those namespaces are allowed.

UI: How to Create, Read, Update and Delete KV pairs from the UI

Kestra follows a philosophy of Everything as Code and from the UI. Therefore, you can create, read, update, and delete KV pairs both from the UI and Code.

Here is a list of the different ways to manage KV pairs:

1. Kestra UI: select a Namespace and go to the KV Store tab — from here, you can create, edit, and delete KV pairs.
2. Task in a flow: use the io.kestra.plugin.core.kv.Set, io.kestra.plugin.core.kv.Get, and io.kestra.plugin.core.kv.Delete tasks to create, read, and delete KV pairs in a flow.
3. Kestra's API: use our HTTP REST API to create, read, and delete KV pairs.
4. Kestra's Terraform provider: use the kestra_kv resource to create, read, and delete KV pairs.
5. Pebble function: use the kv() function to retrieve a value by key in a flow.
6. GitHub Actions: create, read, and delete KV pairs in your CI/CD pipeline.

The sections below provide detailed instructions on how to create and manage KV pairs using each of these methods.

Create new KV pairs from the UI

You can create, read, update, and delete KV pairs from the UI in the following way:

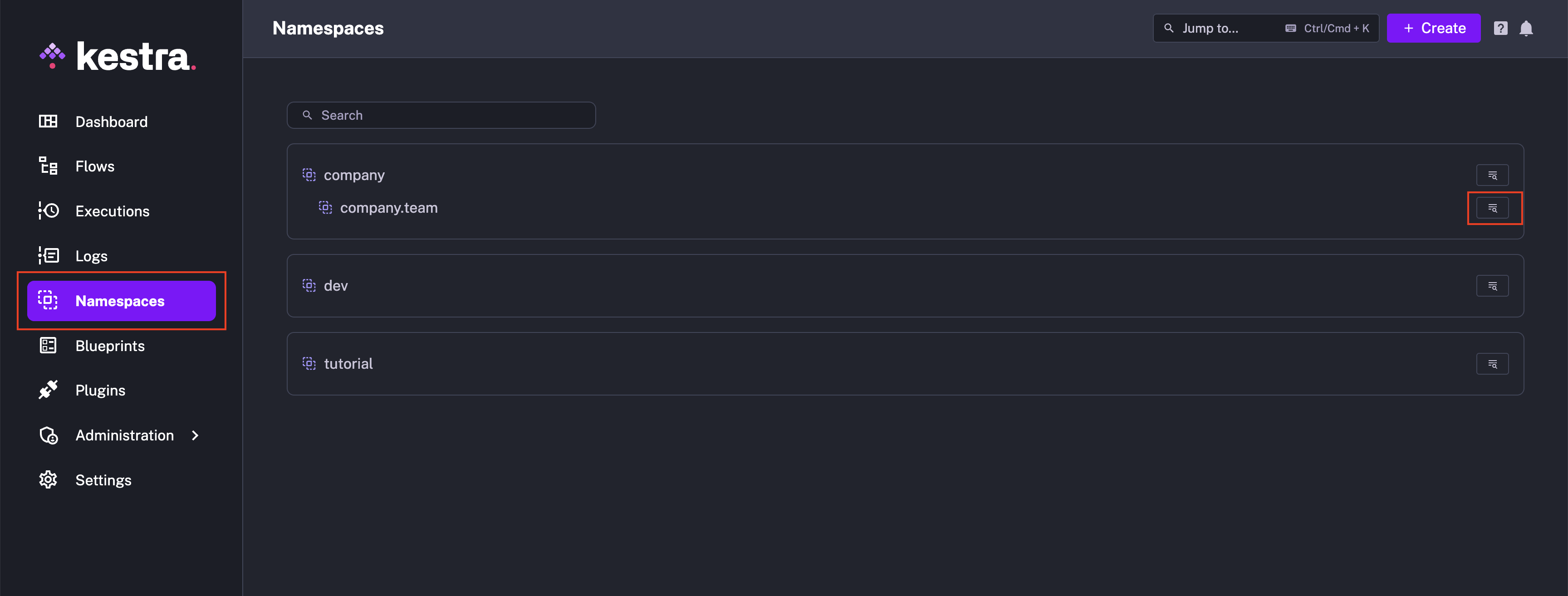

1. Navigate to the Namespaces page from the left navigation menu and select the namespace where you want to create the KV pair.

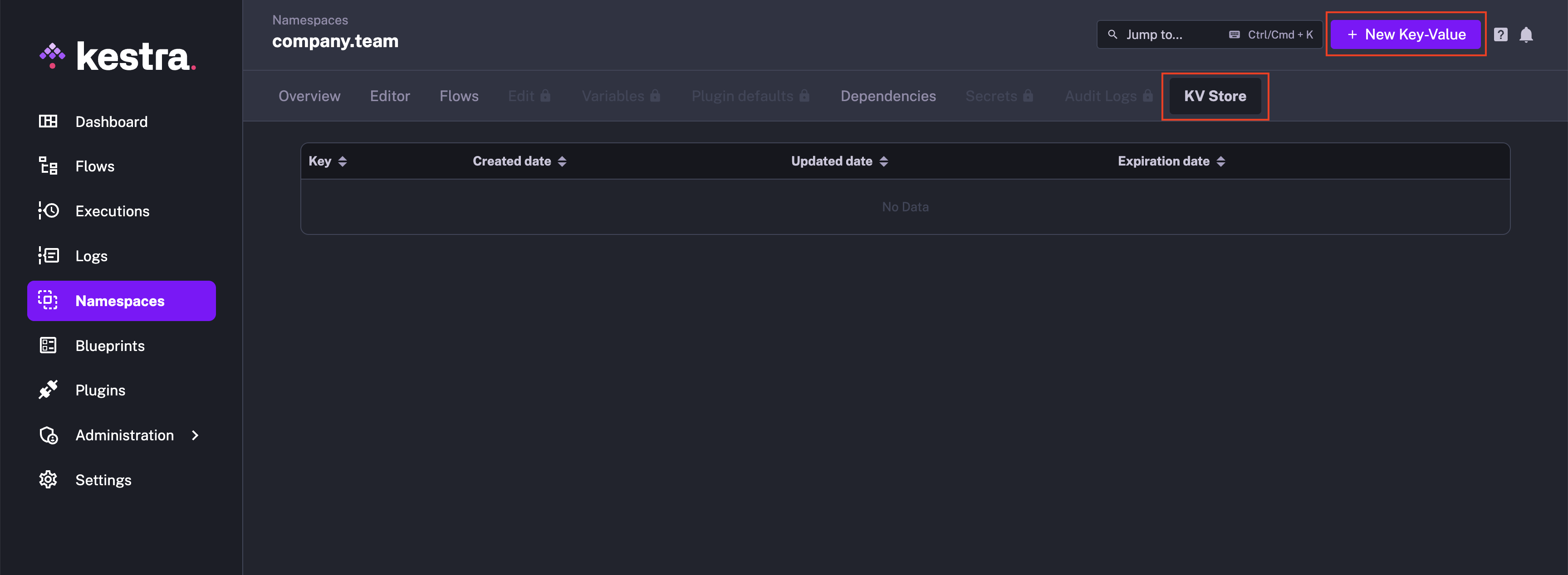

2. Go to the KV Store tab. This is where you can see all the KV pairs associated with this namespace.

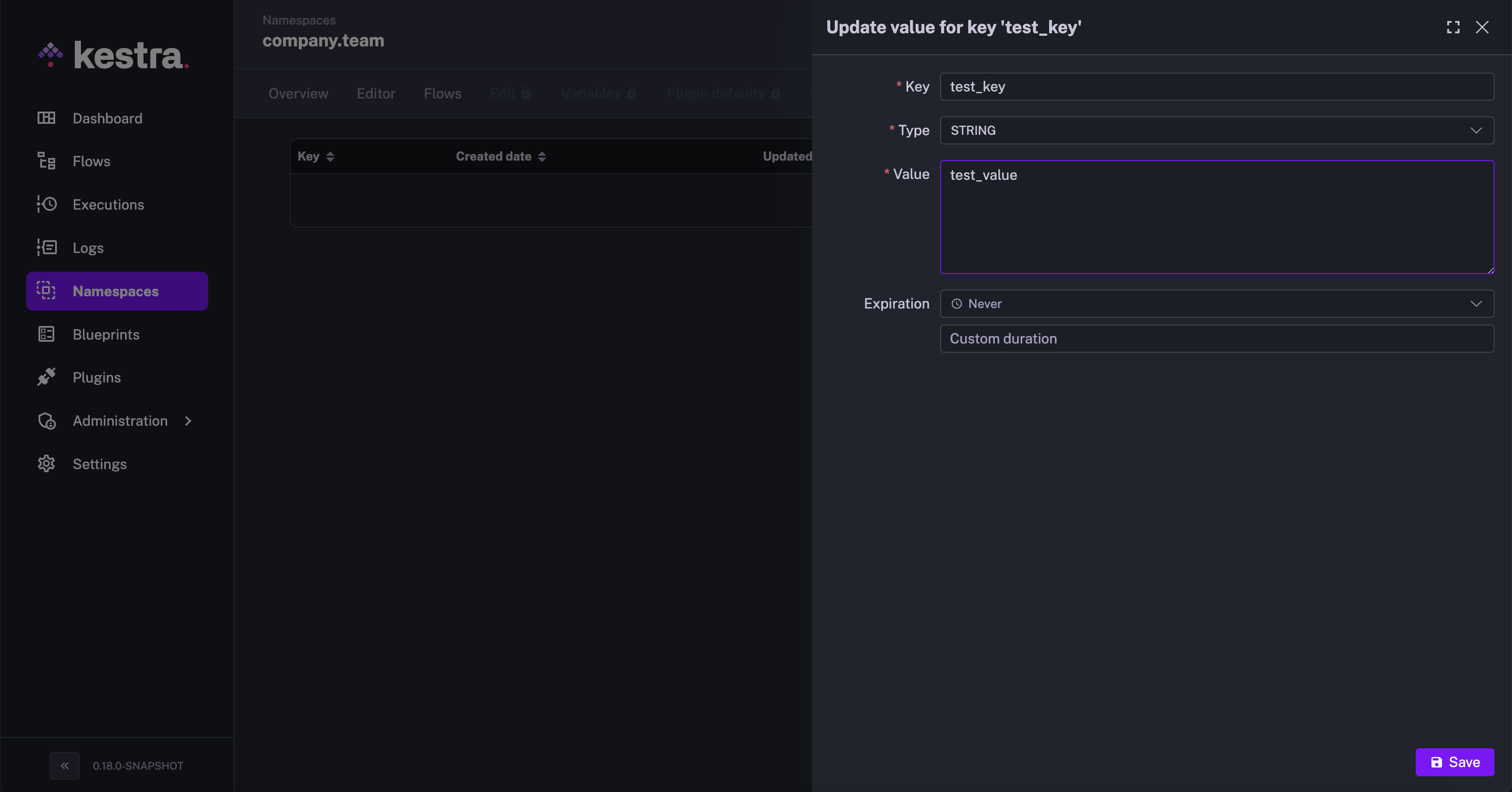

3. Click on New Key-Value button in the top right corner to create a new KV pair. Enter a name for the Key and assign a suitable Type for the value — it can be a string, number, boolean, datetime, date, duration, or JSON.
4. Enter the value in the Value field.
5. Optionally, you can configure a Time to Live (TTL) for the KV pair. The dropdown contains some standard durations. You can also select Custom duration to enter a custom duration as a string in ISO 8601 duration format.
6. Finally, Save the changes. Your new KV pair should now be displayed in the list of KV pairs for that namespace.

Update and Delete KV pairs from the UI

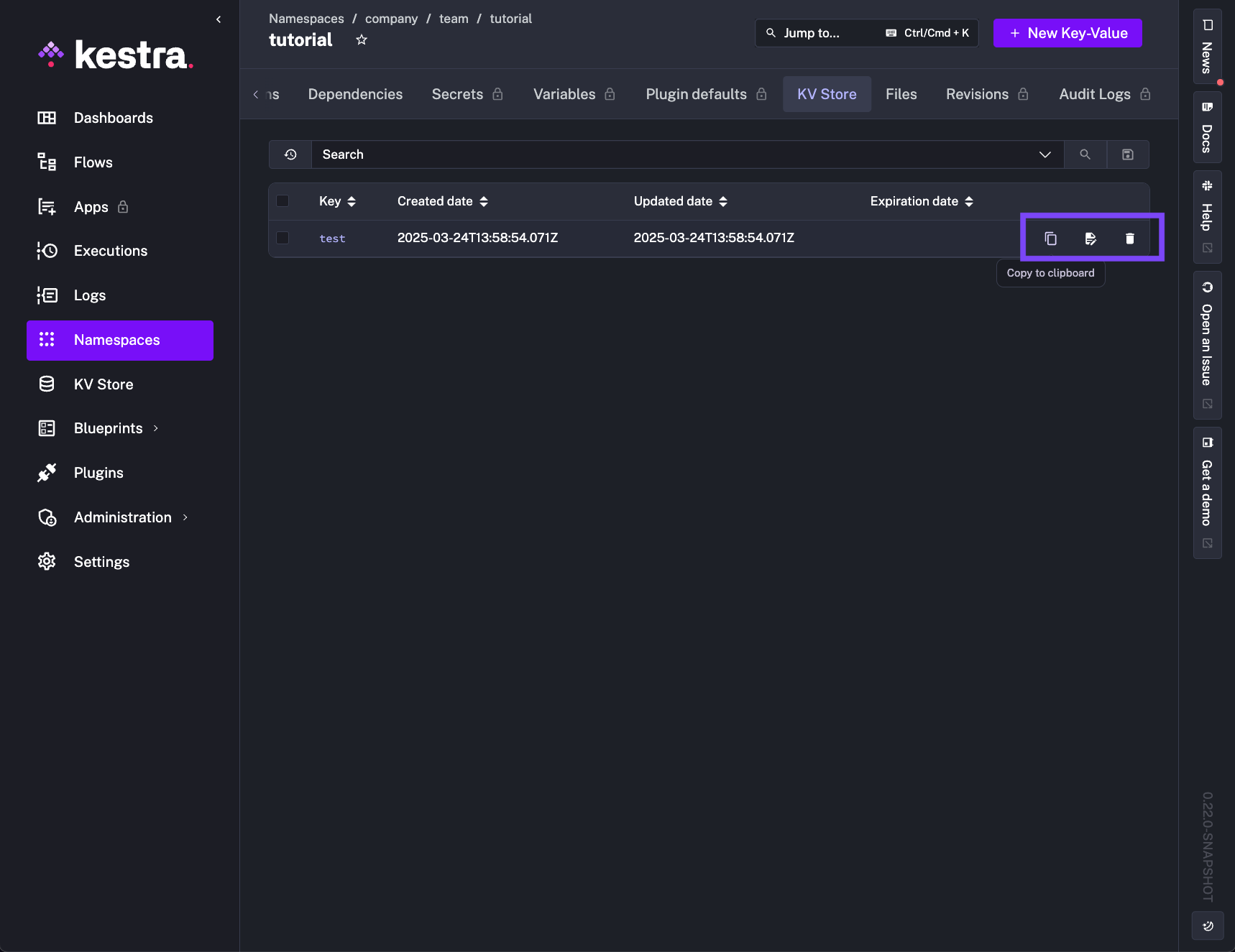

You can edit or delete any KV pair by clicking on the Edit button on the right side of each KV pair.

CODE: How to Create, Read, Update and Delete KV pairs in your flow code

Create a new KV pair with the Set task in a flow

To create a KV pair from a flow, you can use the io.kestra.plugin.core.kv.Set task. Here's an example of how to create a KV pair in a flow:

id: add_kv_pair
namespace: company.team

tasks:
  - id: download
    type: io.kestra.plugin.core.http.Download
    uri: https://huggingface.co/datasets/kestra/datasets/raw/main/csv/orders.csv

  - id: set_kv
    type: io.kestra.plugin.core.kv.Set
    key: my_key
    value: "{{ outputs.download.uri }}"
    namespace: company.team # the current namespace of the flow is used by default
    overwrite: true # whether to overwrite or fail if a value for that key already exists; default true
    ttl: P30D # optional Time to Live (TTL) for the KV pair

  - id: set_simple_kv
    type: io.kestra.plugin.core.kv.Set
    key: simple_string
    value: hello from Kestra

  - id: set_json_kv
    type: io.kestra.plugin.core.kv.Set
    key: json_kv
    value: |
      {
        "author": "Rick Astley",
        "song": "Never Gonna Give You Up"
      }

  - id: get_kv
    type: io.kestra.plugin.core.output.OutputValues
    values:
      my_key: "{{ kv('my_key') }}"
      simple_string: "{{ kv('simple_string') }}"
      favorite_song: "{{ json(kv('json_kv')).song }}"

You can use the io.kestra.plugin.core.kv.Set task to create or modify any KV pair. When modifying existing values, you can leverage the overwrite boolean parameter to control whether to overwrite the existing value or fail if a value for that key already exists. By default, the overwrite parameter is set to true so that the existing value is always updated.

Read KV pairs with Pebble

The easiest way to retrieve a value by key is to use the {{ kv('YOUR_KEY'') }} Pebble function.

Here is the full syntax of that function:

{{ kv(key='your_key_name', namespace='your_namespace_name', errorOnMissing=false) }}

Assuming that you retrieve the key in a flow in the same namespace as the one for which the key was created, you can simply use "{{ kv('my_key') }}" to retrieve the value:

id: read_kv_pair
namespace: company.team
tasks:
  - id: log_key
    type: io.kestra.plugin.core.log.Log
    message: "{{ kv('my_key') }}"

When retrieving the key from another namespace, you can use the following syntax:

id: read_kv_pair_from_another_namespace
namespace: company.team
tasks:
  - id: log_key_from_another_namespace
    type: io.kestra.plugin.core.log.Log
    message: "{{ kv('my_key', 'kestra.engineering.myproject') }}"

By default, when you try to retrieve a key that doesn't exist, the task using the "{{ kv('non_existing_key') }}" expression will run without errors — that expression will simply return null. If you prefer to instead throw an error when the key doesn't exist, you can set the errorOnMissing parameter to true:

id: read_non_existing_kv_pair
namespace: company.team
tasks:
  - id: log_key_from_another_namespace
    type: io.kestra.plugin.core.debug.Return
    format: "{{ kv('non_existing_key', errorOnMissing=true) }}"

The function arguments such as the errorOnMissing keyword can be skipped for brevity as long as you fill in all positional arguments i.e. {{ kv(key='your_key_name', namespace='your_namespace_name', errorOnMissing=false) }} — the version below will have the same effect:

id: read_non_existing_kv_pair
namespace: company.team
tasks:
  - id: log_key_from_another_namespace
    type: io.kestra.plugin.core.debug.Return
    format: "{{ kv('my_key', 'kestra.engineering.myproject', true) }}"

Read KV pairs with the Get task

You can also retrieve the value of any KV pair using the Get task. The Get task will produce the value output, which you can use in subsequent tasks. This option is a little more verbose but it has two benefits:

1. More declarative syntax.
2. Useful when you need to pass the current state of that value to multiple downstream tasks.

id: get_kv_pair
namespace: company.team

tasks:
  - id: get
    type: io.kestra.plugin.core.kv.Get
    key: my_key
    namespace: company.team
    errorOnMissing: false

  - id: log_key_get
    type: io.kestra.plugin.core.log.Log
    message: "{{ outputs.get.value }}"

Read and parse JSON-type values from KV pairs

To parse JSON values in Kestra's templated expressions, make sure to wrap the kv() call in the json() function, e.g. "{{ json(kv('your_json_key')).json_property }}".

The following example demonstrates how to parse values from JSON-type KV pairs in a flow:

id: kv_json_flow
namespace: company.team

tasks:
  - id: set_json_kv
    type: io.kestra.plugin.core.kv.Set
    key: favorite_song
    value: |
      {
        "author": "Rick Astley",
        "song": "Never Gonna Give You Up",
        "album": {
          "name": "Whenever You Need Somebody",
          "release_date": "1987-11-16"
        }
      }

  - id: parse_json_kv
    type: io.kestra.plugin.core.log.Log
    message:
      - "Author: {{ json(kv('favorite_song')).author }}"
      - "Song: {{ json(kv('favorite_song')).song }}"
      - "Album name: {{ json(kv('favorite_song')).album.name }}"
      - "Album release date: {{ json(kv('favorite_song')).album.release_date }}"

  - id: get
    type: io.kestra.plugin.core.kv.Get
    key: favorite_song

  - id: parse_json_from_kv
    type: io.kestra.plugin.core.log.Log
    message: "Country: {{ json(outputs.get.value).album.name }}"

Read keys by prefix with the GetKeys task

If you want to check if some values already exist for a given key, you can search keys by prefix:

id: get_keys_by_prefix
namespace: company.team

tasks:
  - id: get
    type: io.kestra.plugin.core.kv.GetKeys
    prefix: "test_"
    namespace: company.team

  - id: log_key_prefix
    type: io.kestra.plugin.core.log.Log
    message: "{{ outputs.get.keys }}"

The output will be a list of keys - if no keys were found, an empty list will be returned.

Delete a KV pair with the Delete task

The io.kestra.plugin.core.kv.Delete task will produce the boolean output deleted to confirm whether a given KV pair was deleted or not.

id: delete_kv_pair
namespace: company.team

tasks:
  - id: kv
    type: io.kestra.plugin.core.kv.Delete
    key: my_key
    namespace: company.team
    errorOnMissing: false

  - id: check_if_deleted
    type: io.kestra.plugin.core.log.Log
    message: "{{ outputs.kv.deleted }}"

API: How to Create, Read, Update and Delete KV pairs via REST API

Let's look at how you can interact with the KV Store via the REST API.

Create a KV pair

The API call to set the KV pair follows the structure:

curl -X PUT -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/{namespace}/kv/{key} -d '<value>'

For example:

curl -X PUT -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/company.team/kv/my_key -d '"Hello World"'

The above curl command will create the KV pair with key my_key and the Hello World string value in the company.team namespace. The API does not return any response.

Read the value by key

You can get any particular KV pair using:

curl -X GET -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/{namespace}/kv/{key}

For example:

curl -X GET -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/company.team/kv/my_key

This will retrieve a KV pair with the key my_key in the company.team namespace. The output of the API will contain the data type of the value and the retrieved value of the KV pair:

{"type": "STRING", "value": "Hello World"}

Read all keys in the namespace

You can list all keys in the namespace as follows:

curl -X GET -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/{namespace}/kv

The curl command below will return all keys in the company.team namespace:

curl -X GET -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/company.team/kv

The output will be returned as a JSON array of all keys in the namespace:

[
  {"key":"my_key","creationDate":"2024-07-27T06:10:33.422Z","updateDate":"2024-07-27T06:11:08.911Z"},
  {"key":"test_key","creationDate":"2024-07-27T04:37:18.196Z","updateDate":"2024-07-27T04:37:18.196Z"}
]

Delete a KV pair

You can delete any KV pair using the following API call:

curl -X DELETE -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/{namespace}/kv/{key}

This call returns a boolean indicating whether the key was deleted.

For example, the following curl command will return false because the key non_existing_key does not exist:

curl -X DELETE -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/company.team/kv/non_existing_key

However, when we try to delete a key my_key which exists in the company.team namespace, the same API call will return true:

curl -X DELETE -H "Content-Type: application/json" http://localhost:8080/api/v1/namespaces/company.team/kv/my_key

TERRAFORM: How to Create, Read, Update and Delete KV pairs via Terraform

Create a KV pair

You can create a KV pair via Terraform by using the kestra_kv resource.

Here is an example of how to create a KV pair:

resource "kestra_kv" "my_key" {
  namespace = "company.team"
  key       = "my_key"
  value     = "Hello Woprld"
  type      = "STRING"
}

Read a KV pair

You can read a KV pair via Terraform by using the kestra_kv data source.

Here is an example of how to read a KV pair:

data "kestra_kv" "new" {
  namespace = "company.team"
  key       = "my_key"
}

As with anything in Terraform, you can manage the state of your KV resources by adjusting the Terraform code and running the terraform apply command to create, update, or delete your KV pairs.
