Triggers
Trigger is a mechanism that automates the execution of a flow.
Triggers can be scheduled or event-based providing lots of flexibility in how you can automate the execution of your workflows.
Trigger types
Kestra supports both scheduled and external events.
Kestra provides five types of triggers:
- Schedule trigger allows you to execute your flow on a regular cadence e.g. using a CRON expression and custom scheduling conditions
- Flow trigger allows you to execute your flow when another flow finishes its execution (based on a configurable list of states)
- Webhook trigger allows you to execute your flow based on an HTTP request emitted by a webhook.
- Polling trigger allows you to execute your flow by polling external systems for the presence of data.
- Realtime trigger allows you to execute your flow when events happen with millisecond latency.
Many other triggers are available from the plugins, such as triggers based on file detection events, e.g. the S3 trigger, or a new message arrival in a message queue, such as the SQS or Kafka trigger.
Trigger Common Properties
Following trigger properties can be set.
Field | Description |
---|---|
id | The flow identifier, must be unique inside a flow. |
type | The Java FQDN of the trigger. |
description | The description of the trigger. |
disabled | Set it to true to disable execution of the trigger. |
workerGroup.key | To execute this trigger on a specific Worker Group (EE) |
Trigger Variables
Triggers allow you to access trigger metadata through expressions e.g. {{ trigger.date }}
to access the current date of the Schedule trigger, {{ trigger.uri }}
to access the file or message from any file detection or message arrival event, as well as {{ trigger.rows }}
for all Query triggers e.g. the PostgreSQL Query trigger.
This example will log the date when the trigger executes the flow:
id: variables
namespace: company.team
tasks:
- id: hello
type: io.kestra.plugin.core.log.Log
message: "Hello World on {{ trigger.date }}! ๐"
triggers:
- id: schedule
type: io.kestra.plugin.core.trigger.Schedule
cron: "@hourly"
Note that the above-mentioned templated variables are only available when the execution is created automatically by the trigger. You'll get an error if you try to run a flow containing such variables manually.
Also, note that you don't need an extra task to consume the file or message from the event. Kestra downloads those automatically to the internal storage and makes those available in your flow using {{ trigger.uri }}
variable. Therefore, you don't need any additional task to e.g. consume a message from the SQS queue or to download a file from S3 when using those event triggers. The trigger already consumes and downloads those, making them directly available for further processing. Check the documentation of a specific trigger and Blueprints with the Trigger tag for more details and examples.
Triggers restrict parallel execution for a given trigger ID to one active run. For instance, if an Execution from a flow with a Schedule
trigger with ID hourly
is still in a Running
state, another one will not be started. However, you can still trigger the same flow manually (from the UI or API), and the scheduled Executions will not be affected.
id: hourlyFlow
namespace: company.team
tasks:
- id: important-task
type: io.kestra.plugin.core.log.Log
message: If this runs for longer than 1h, next Executions will be queued rather than being started immediately
triggers:
- id: hourly
type: io.kestra.plugin.core.trigger.Schedule
cron: "@hourly"
Conditions
Conditions are specific criteria or events that determine when a specific triggers should create a new execution. Usually, they limit the scope of a trigger to a specific set of cases.
For example, you can restrict a Flow trigger to a specific namespace prefix or execution status, and you can restrict a Schedule trigger to a specific time of the week or month.
You can pass a list of conditions; in this case, all the conditions must match to enable the current action.
Available conditions include:
- HasRetryAttemptCondition
- MultipleCondition
- NotCondition
- OrCondition
- ExecutionFlowCondition
- ExecutionNamespaceCondition
- ExecutionLabelsCondition
- ExecutionStatusCondition
- ExecutionOutputsCondition
- ExpressionCondition
You can also find datetime related conditions on the Schedule trigger page.
Unlocking, enabling and disabling triggers
Disabling a trigger in the source code
If you want to temporarily disable a trigger, you could do so by setting the disabled
property to true
, as you can see in the example below:
id: hello_world
namespace: company.team
tasks:
- id: sleep
type: io.kestra.plugin.scripts.shell.Commands
taskRunner:
type: io.kestra.plugin.core.runner.Process
commands:
- sleep 30
triggers:
- id: schedule
type: io.kestra.plugin.core.trigger.Schedule
cron: "*/1 * * * *"
disabled: true
However, this approach requires changing the source code. A better approach is to use the Enabled
toggle from the UI.
Disabling a trigger from the UI

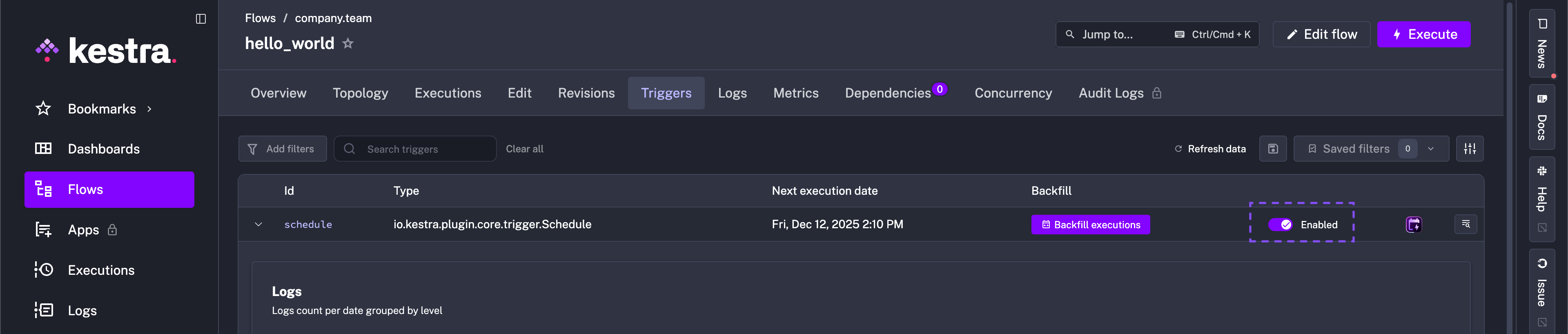

You can disable or re-enable a trigger from the UI. Here is how you can do it:
- Go to the
Flows
page and click on the flow you want to disable the trigger for. - Go to the
Triggers
tab and click on theEnabled
toggle next to the trigger you want to disable. You can re-enable it by clicking the toggle again.

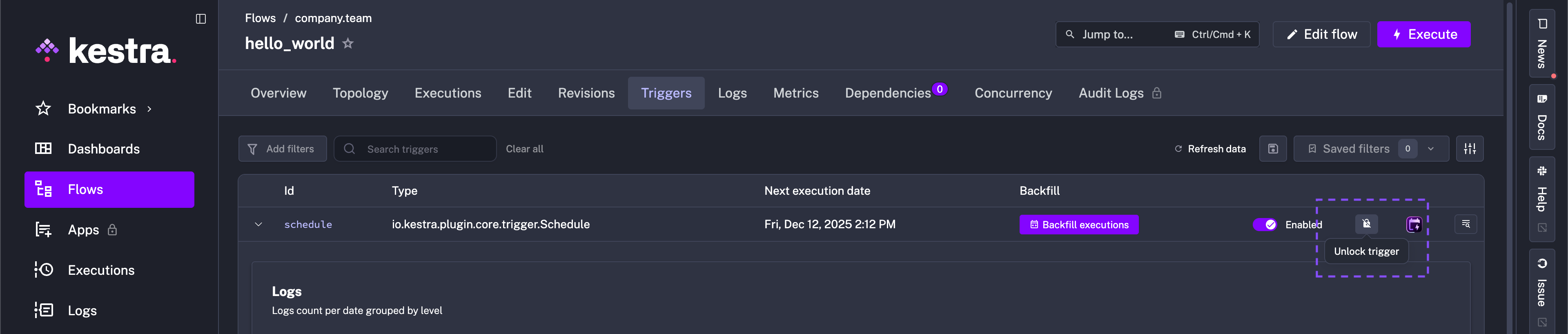

If your trigger is locked due to an execution in progress, you can unlock it by clicking the Unlock trigger
button.
The Unlock trigger functionality is useful for troubleshooting, e.g. if a process is stuck due to infrastructure issues. Note that manually unlocking triggers may result in multiple concurrent (potentially duplicated) executions โ use it with caution.
Toggle or unlock triggers from the Administation page

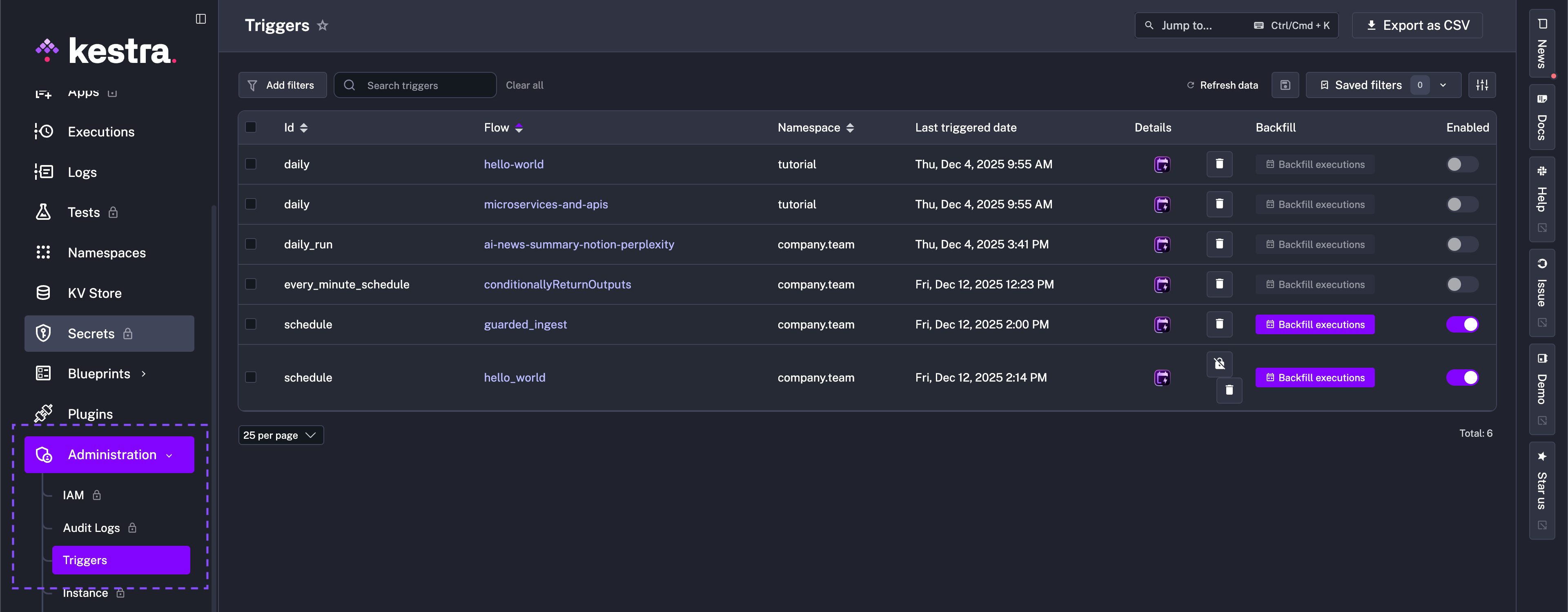

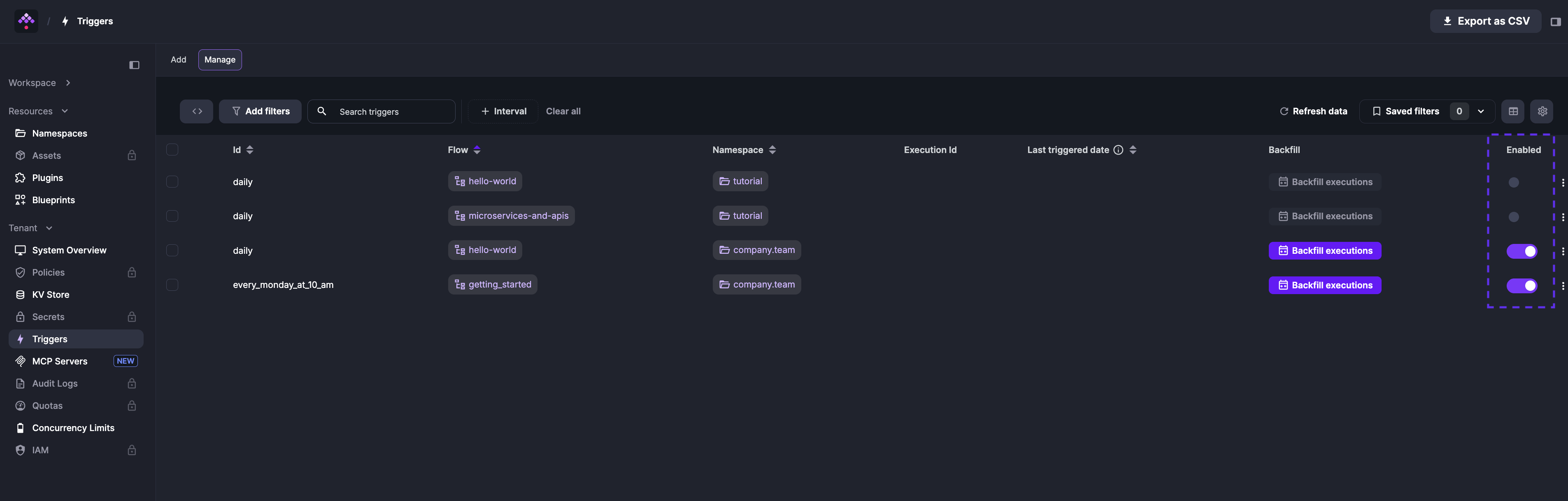

You can also disable, re-enable, or unlock triggers from the Administration page. Here is how you can do it:
Troubleshooting a trigger from the UI
Let's say you misconfigured a trigger, and as a result, no Executions are created.
The example flow below illustrates this scenario. Note how the sqs_trigger
trigger is misconfigured with invalid AWS credentials:
id: bad_trigger_example
namespace: company.team
tasks:
- id: hello
type: io.kestra.plugin.core.log.Log
message: Hello World!
triggers:
- id: sqs_trigger
type: io.kestra.plugin.aws.sqs.Trigger
accessKeyId: "nonExistingKey"
secretKeyId: "nonExistingSecret"
region: "us-east-1"
queueUrl: "https://sqs.us-east-1.amazonaws.com/123456789/testQueue"
maxRecords: 10

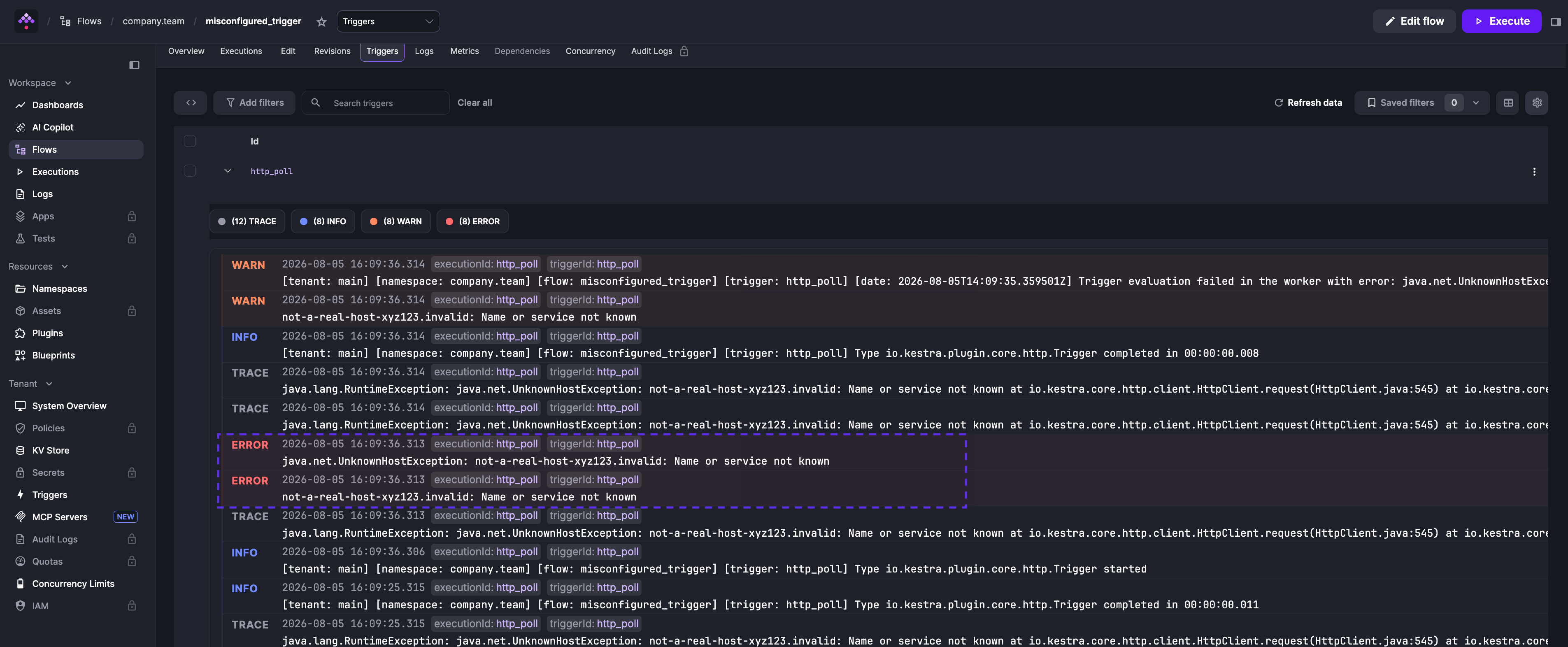

When you add that flow to Kestra, you'll see that no Executions are created. To troubleshoot this, you can go to the Triggers
tab on the Flow's page and expand the logs of the trigger that is causing the issue. You'll see a detailed error message that will help you identify the problem:
The stopAfter
property
Kestra 0.15 introduced a generic stopAfter
property which is a list of states that will disable the trigger after the flow execution has reached one of the states in the list.
This property is meant to be used primarily for a Schedule
trigger and triggers that poll for conditions including the HTTP, JDBC, or File Detection triggers. However, you can use it with all triggers.
Note that we don't handle any automatic trigger reenabling logic. After a trigger has been disabled due to the stopAfter
state condition, you can take some action based on it and manually reenable the trigger.
Pause the schedule trigger after a failed execution
The stopAfter
property can be used to pause a schedule trigger after a failed execution. Here is an example of how to use it:
id: business_critical_flow
namespace: company.team
tasks:
- id: important_task
type: io.kestra.plugin.core.log.Log
message: if this fails, we want to stop the flow from running until we fix it
triggers:
- id: stopAfter
type: io.kestra.plugin.core.trigger.Schedule
cron: "0 9 * * *"
stopAfter:
- FAILED
The above flow will be triggered every day at 9:00 AM, but if it fails, the schedule will be paused so that you can manually reenable the trigger once the issue is fixed. This is useful for business-critical flows that should not continue running the next scheduled executions if a previous execution has failed.
Disable the HTTP trigger after the first successful execution
The example below shows how to use the stopAfter
property with the HTTP trigger condition. The use case is to poll an API endpoint and send a Slack alert if the price is below $110. If the condition is met, the trigger will be disabled so that you don't get alerted every 30 seconds about the same condition.
id: http
namespace: company.team
tasks:
- id: slack
type: io.kestra.plugin.notifications.slack.SlackIncomingWebhook
url: "{{ secret('SLACK_WEBHOOK') }}"
payload: |
{
"channel": "#price-alerts",
"text": "The price is now: {{ json(trigger.body).price }}"
}
triggers:
- id: http
type: io.kestra.plugin.fs.http.Trigger
uri: https://fakestoreapi.com/products/1
responseCondition: "{{ json(response.body).price <= 110 }}"
interval: PT30S
stopAfter:
- SUCCESS
Let's break down the above example:
- The HTTP trigger will poll the API endpoint every 30 seconds to check if the price of a product is below $110.
- If the condition is met, the Execution will be created
- Within that execution, the
slack
task will send a Slack message to the#price-alerts
channel to notify about the price change - After that execution finishes successfully, the
stopAfter
property condition is met โ it will disable the trigger ensuring that you don't get alerted every 30 seconds about the same condition.
Locked triggers
Flow, Schedule and Polling triggers have locks to avoid concurrent trigger evaluation and concurrent execution of a flow for a trigger.
To see a list of triggers and inspect their current status, go to the Administration -> Triggers section in the Kestra UI. From here, you can unlock a trigger if it is locked. Keep in mind that there is a risk or concurrent trigger evaluation or flow execution for this trigger if you unlock it manually.
Setting Inputs inside of triggers
You can easily pass inputs to triggers by using the inputs
property and passing them as a key-value pair.
In this example, the user
input is set to "John Smith" inside of the schedule
trigger:
id: myflow
namespace: company.team
inputs:
- id: user
type: STRING
defaults: Rick Astley
tasks:
- id: hello
type: io.kestra.plugin.core.log.Log
message: "Hello {{ inputs.user }}! ๐"
triggers:
- id: schedule
type: io.kestra.plugin.core.trigger.Schedule
cron: "*/1 * * * *"
inputs:
user: John Smith
