​Microsoft ​Entra ​I​D ​S​C​I​M ​Provisioning

Sync Users and Groups from Microsoft Entra ID to Kestra using SCIM.

Prerequisites

• Microsoft Entra ID Account: an account with administrative privileges to configure SCIM provisioning.
• Enable multi-tenancy in Kestra: tenants MUST be enabled in Kestra to support SCIM provisioning. You can enable tenants by setting the kestra.ee.tenants.enabled configuration property to true:

kestra:
  ee:
    tenants:
      enabled: true

Kestra SCIM Setup: Create a New Provisioning Integration

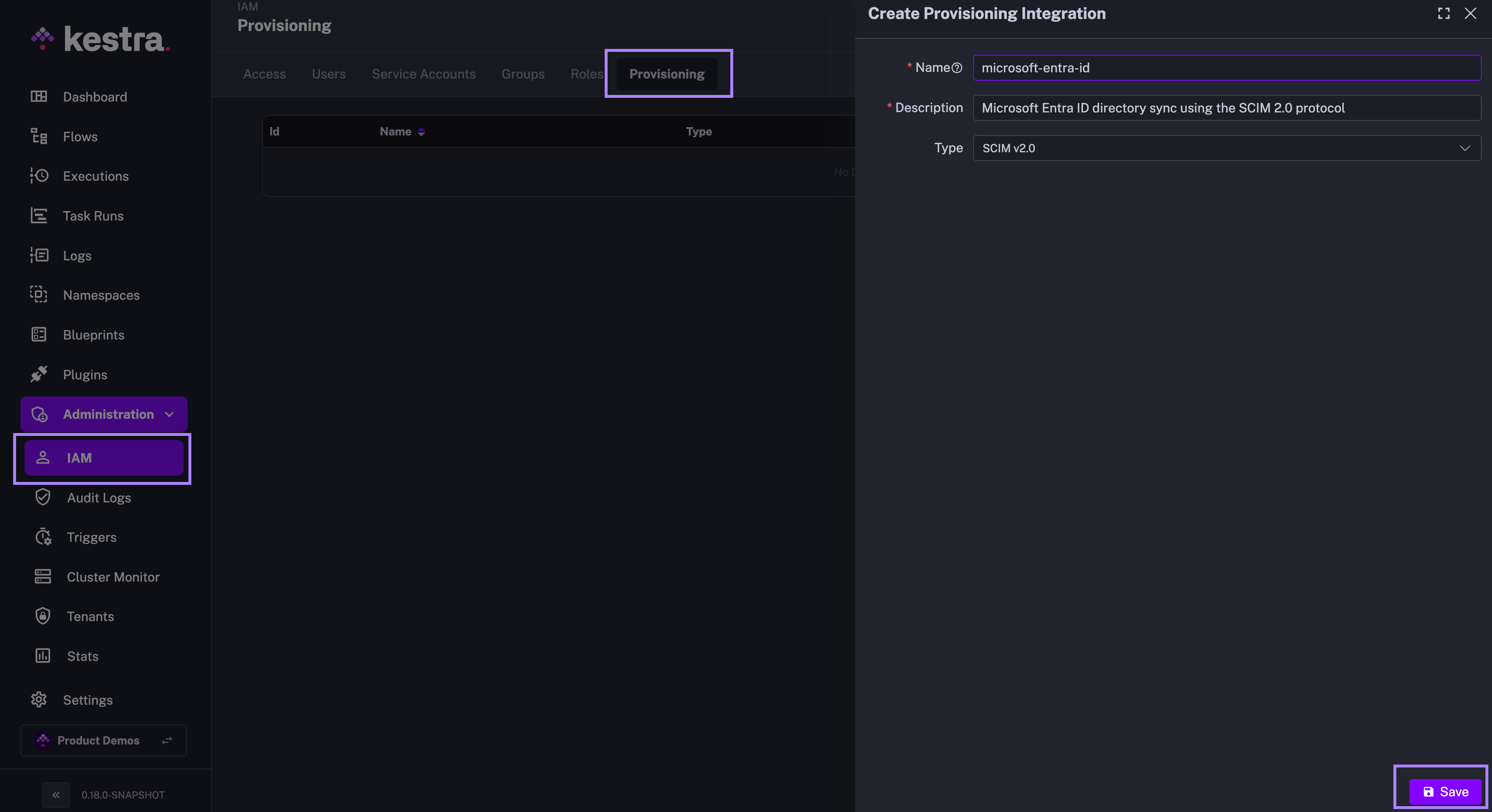

1. In the Kestra UI, navigate to the Administration → IAM → Provisioning page.
2. Click on the Create button in the top right corner of the page.
3. Fill in the following fields:
   • Name: Enter a name for the provisioning integration.
   • Description: Provide a brief description of the integration.
   • Provisioning Type: currently, we only support SCIM 2.0 — leave the default selection and click Save.

The above steps will generate a SCIM endpoint URL and a Secret Token that you will use to authenticate Microsoft Entra ID with the SCIM integration in Kestra. Save those details as we will need them in the next steps.

The endpoint should look as follows:

https://your_kestra_host/api/v1/your_tenant/integrations/integration_id/scim/v2

The Secret Token will be a long string (ca. 200 characters) that will authenticate requests from Microsoft Entra ID to Kestra.

Enable or Disable SCIM Integration

Note that you can disable or completely remove the SCIM Integration at any time. When an integration is disabled, all incoming requests for that integration endpoint will be rejected.

IAM Role and Service Account

When creating a new Provisioning Integration, Kestra will automatically create two additional objects:

1. Role SCIMProvisioner with the following permissions:
   • GROUPS: CREATE, READ UPDATE, DELETE
   • USERS: CREATE, READ, UPDATE
   • BINDINGS: CREATE, READ, UPDATE, DELETE
2. Service Account with an API Token which was previously displayed as a Secret Token for the integration:

Microsoft Entra ID SCIM Setup

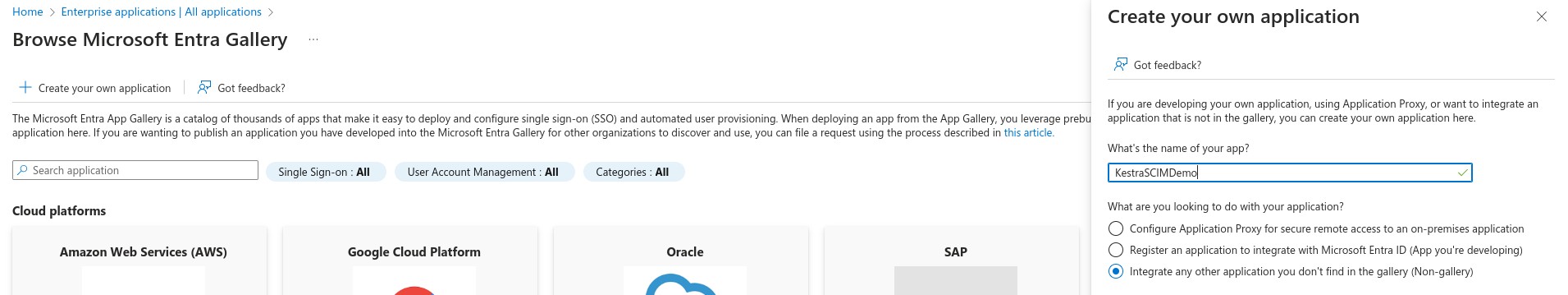

1. Register Kestra as an Enterprise Application:

• Navigate to Microsoft Entra ID → Enterprise Applications.
• Click on the + New application button to create a new custom application. You can name the app "KestraSCIM" or any other relevant name.

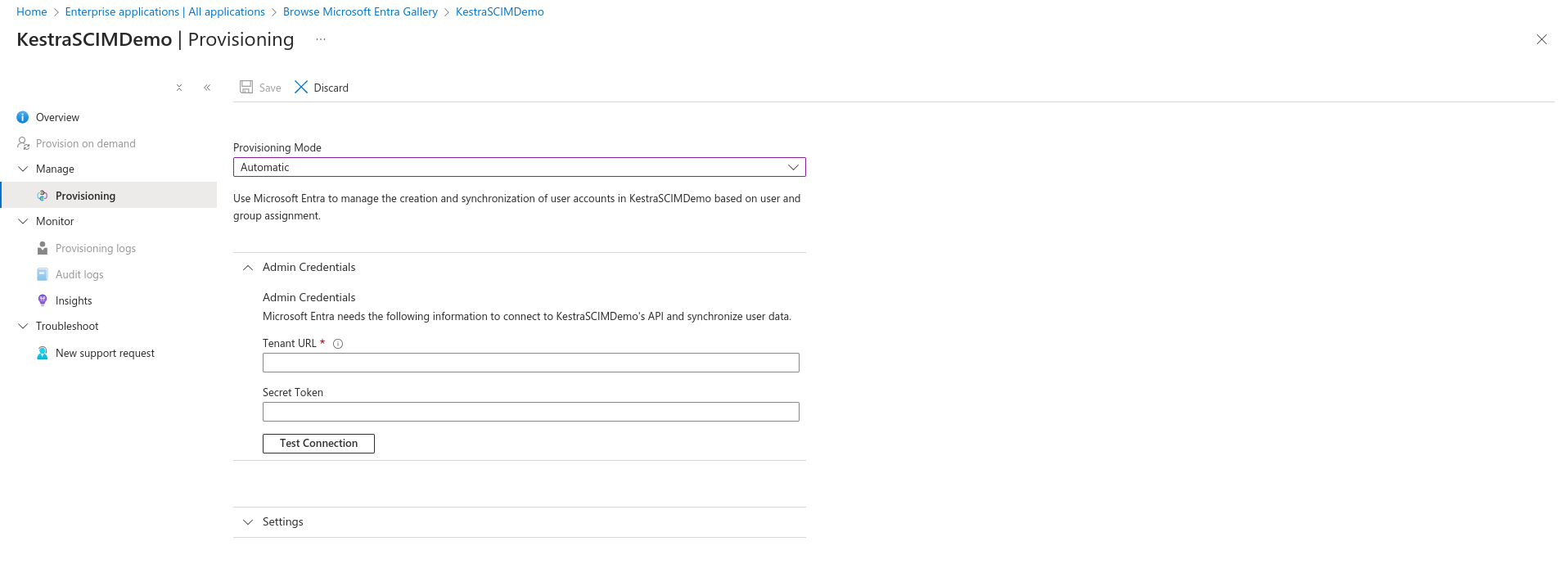

2. Configure SCIM Provisioning:

• Go to the newly created Kestra application.
• Select "Provisioning" and set the Provisioning Mode to "Automatic".
• Enter the SCIM endpoint URL and the Secret Token provided by Kestra. Paste kestra's SCIM endpoint URL into the Tenant URL field and the Secret Token into the Secret Token field.
• Finally, click on Test Connection and on the Save button.

3. Map User and Group Attributes:

After entering and saving the Admin Credentials for SCIM provisioning connection in Microsoft Entra ID (i.e., the Tenant URL and Secret Token), Azure will enable the Mappings section under the Provisioning settings.

The Mappings section allows you to define how user and group attributes should flow between Microsoft Entra ID and Kestra.

SCIM Schema Support in Kestra

Kestra adheres to the SCIM 2.0 specification (RFC 7643), specifically supporting the following resource types:

• User Resource:
  • Example attributes: userName, name.givenName, name.familyName, emails, active
• Group Resource:
  • Example attributes: displayName, members

Retrieve Supported Schemas

Kestra exposes SCIM resource schemas via its /Schemas endpoint exposed via the SCIM URL. This allows Microsoft Entra ID to discover the required attributes.

GET /api/v1/<tenant>/integrations/<integration_id>/scim/v2/Schemas

This endpoint returns a list of supported schemas and their attributes. Use it as a reference when configuring attribute mappings in Entra ID.

Configure User and Group mapping

To configure mappings:

1. Go to: Microsoft Entra Admin Center → Enterprise Applications → Your Kestra App → Provisioning → Mappings
2. Configure attribute mappings:

• For Users:
  • Map source attributes such as userPrincipalName, mail to their SCIM equivalents.
• For Groups:
  • Map attributes such as displayName
  • Ensure group members are synchronized properly.

3. Refer to the /Schemas endpoint response from Kestra to guide accurate mapping.
4. Use attribute expressions or transformations in Entra ID if needed (e.g., to format names or emails).

Test the Configuration

After mappings are configured:

• Trigger a manual provisioning cycle from the Provisioning tab.
• Verify that users and groups are correctly created or updated in Kestra.
• Review provisioning logs in Entra ID for any errors or warnings.

4. Enable Provisioning:

• Now that everything is configured, you can enable the provisioning integration toggle in the Kestra UI to start syncing users and groups from Microsoft Entra ID to Kestra.

Additional Resources

• Microsoft Entra ID SCIM Documentation
