Log Shipper

Available on: Enterprise Edition0.21.0

Manage and distribute logs across your entire infrastructure.

Log Shipper functionality

Log Shipper can distribute Kestra logs from across your instance to an external logging platform. Log synchronization queries logs and automatically batches them into optimal chunks. The batch process is done intelligently through defined synchronization points. Once batched, the Log Shipper delivers reliable, consistent log batches to your monitoring platform.

Log Shipper is built on top of Kestra plugins, ensuring it can integrate with popular logging platforms and expand as more plugins are developed. As of Kestra version 0.21, supported observability platforms include ElasticSearch, Datadog, New Relic, Azure Monitor, Google Operational Suite, AWS Cloudwatch, and OpenTelemetry.

Log Shipper properties

The Log Shipper plugin has several key properties to define where the logs should be sent and how they are batched. Below is a list of the definable properties and their purpose:

logExporters - This property is required, and it specifies the plaform where the logs will be exported. It support a list of entries, allowing you to export logs to different platforms at once
logLevelFilter - Specifies the minimum log level to send with the default being INFO. With INFO, all log levels INFO and above (WARNING and ERROR) are batched. If you only want logs that are warnings or errors, then you can set this property to WARNING and so on.
lookbackPeriod - Determines the fetch period for logs to be sent. For example, with a default value of P1D, all logs generated between now and one day ago are batched.
namespace - Sets the task to only gather logs from a specific Kestra Namespace. If not specified, all instance logs are fetched.
offsetKey - Specifies the prefix of the Key Value (KV) store key that contains the last execution's end fetched date. By default this is set as LogShipper-state. You can change this key store name to reset the last fetched date if, for example, you want to export previously exported logs.

How log shipper works

Let's take a look at a simple example of a Log Shipper task that fetches logs and exports them to AWS CloudWatch, Google Operational Suite, and Azure Monitor at the same time.

yaml

id: logShipper
namespace: system

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: awsCloudWatch
        type: io.kestra.plugin.ee.aws.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: us-east-1
        logGroupName: kestra
        logStreamName: production
        chunk: 5000

      - id: googleOperationalSuite
        type: io.kestra.plugin.ee.gcp.LogExporter
        projectId: my-gcp-project
        chunk: 2000

      - id: azureMonitor
        type: io.kestra.plugin.ee.azure.LogExporter
        endpoint: https://endpoint-host.ingest.monitor.azure.com
        tenantId: "{{ secret('AZURE_TENANT_ID') }}"
        clientId: "{{ secret('AZURE_CLIENT_ID') }}"
        clientSecret: "{{ secret('AZURE_CLIENT_SECRET') }}"
        ruleId: dcr-69f0b123041d4d6e9f2bf72aad0b62cf
        streamName: kestraLogs
        chunk: 1000

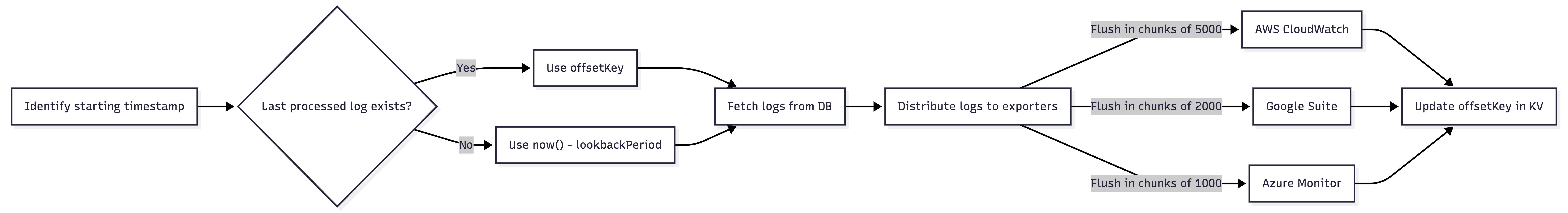

The plugin starts by identifying the starting timestamp and checking if the last processed log exists. If it does, the plugin uses the offsetKey to fetch logs from the database. If the last processed log does not exist, the plugin uses the current time minus the lookbackPeriod to fetch logs from the database.

The logs are then distributed to the exporters in chunks of 5000, 2000, and 1000 for AWS CloudWatch, Google Suite, and Azure Monitor, respectively. Once the logs are distributed, the offset key in the Key Value store is updated.

Log Shipper examples

The Log Shipper integrates with many popular observability platforms. Below are a coupe of example flows using a Kestra core plugin as well as external platform plugins.

Kestra `FileLogExporter`

The following example uses Kestra's core FileLogExporter plugin to sychronize the logs of the company.team namespace. The synchronize_logs task outputs a file, and the log file uri is passed as an expression in the upload task to then upload the logs to an S3 bucket.

yaml

id: log_shipper_file
namespace: system

tasks:
  - id: synchronize_logs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: LogShipper-local-demo
    namespace: company.team
    logExporters:
      - id: file
        type: io.kestra.plugin.ee.core.log.FileLogExporter

  - id: upload
    type: io.kestra.plugin.aws.s3.Upload
    accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
    secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
    from: "{{ outputs.synchronize_logs.outputs.file.uri }}"
    key: logs/kestra.txt
    bucket: kestra-log-demo-bucket
    region: eu-west-2

Datadog

The below example demonstrates an execution that runs a daily log synchronization and distribution of logs with Datadog using the default property settings.

yaml

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    logExporters:
      - id: DatadogLogExporter
        type: io.kestra.plugin.ee.datadog.LogExporter
        basePath: '{{ secret("DATADOG_INSTANCE_URL") }}'
        apiKey: '{{ secret("DATADOG_APIK_KEY") }}'

The batched logs directly populate your Datadog instance like in the following screenshot:

Datadog Logs

AWS Cloudwatch

This example exports logs to AWS Cloudwatch. The following example flow triggers a daily batch and exports to AWS's service Amazon CloudWatch:

yaml

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: log_shipper_aws_cloudwatch_state
    logExporters:
      - id: aws_cloudwatch
        type: io.kestra.plugin.ee.aws.cloudwatch.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: "{{ vars.region }}"
        logGroupName: kestra
        logStreamName: kestra-log-stream

The logs are viewable in the interface of the specified Log Group and can be examined like in the following screenshot:

AWS Cloud Watch Logs

Google Operational Suite

This example exports logs to Google Cloud Observability. The following example flow triggers a daily batch and exports to Google Cloud Platform's observability monitor.

yaml

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: googleOperationalSuite
        type: io.kestra.plugin.ee.gcp.operationalsuite.LogExporter
        projectId: my-gcp-project

Azure Monitor

This example exports logs to Azure Monitor. The following example flow triggers a daily batch and export to Azure Monitor.

yaml

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: azureMonitor
        type: io.kestra.plugin.ee.azure.LogExporter
        endpoint: https://endpoint-host.ingest.monitor.azure.com
        tenantId: "{{ secret('AZURE_TENANT_ID') }}"
        clientId: "{{ secret('AZURE_CLIENT_ID') }}"
        clientSecret: "{{ secret('AZURE_CLIENT_SECRET') }}"
        ruleId: dcr-69f0b123041d4d6e9f2bf72aad0b62cf
        streamName: kestraLogs

Elasticsearch

This example exports logs to Elasticsearch. The following example flow triggers a daily batch and export to Elasticsearch Observability platform.

yaml

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: elasticsearch
        type: io.kestra.plugin.elasticsearch.LogExporter
        indexName: kestra-logs
        connection:
          basicAuth:
            password: "{{ secret('ES_PASSWORD') }}"
            username: kestra_user
          hosts:
            - https://elastic.example.com:9200

New Relic

This example exports logs to New Relic. The following example flow triggers a daily batch and export to the New Relic Observability Platform.

yaml

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: newRelic
        type: io.kestra.plugin.ee.newrelic.LogExporter
        basePath: https://log-api.newrelic.com
        apiKey: "{{ secret('NEWRELIC_API_KEY') }}"

OpenTelemetry

This example exports logs to OpenTelemetry. The following example flow triggers a daily batch and export to an OpenTelemetry Collector.

yaml

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: openTelemetry
        type: io.kestra.plugin.ee.opentelemetry.LogExporter
        otlpEndpoint: http://otel-collector:4318/v1/logs
        authorizationHeaderName: Authorization
        authorizationHeaderValue: "Bearer {{ secret('OTEL_TOKEN') }}"
