Monitor Workflows with Kestra Dashboards

Get insights into your workflows with Dashboards.

Monitor Kestra executions with dashboards

The first time you access the main Dashboard, you’ll see the Welcome Page and you can click Create my first flow to launch a Guided Tour.

Once you have executed a flow, you will see your flow executions in the dashboard.

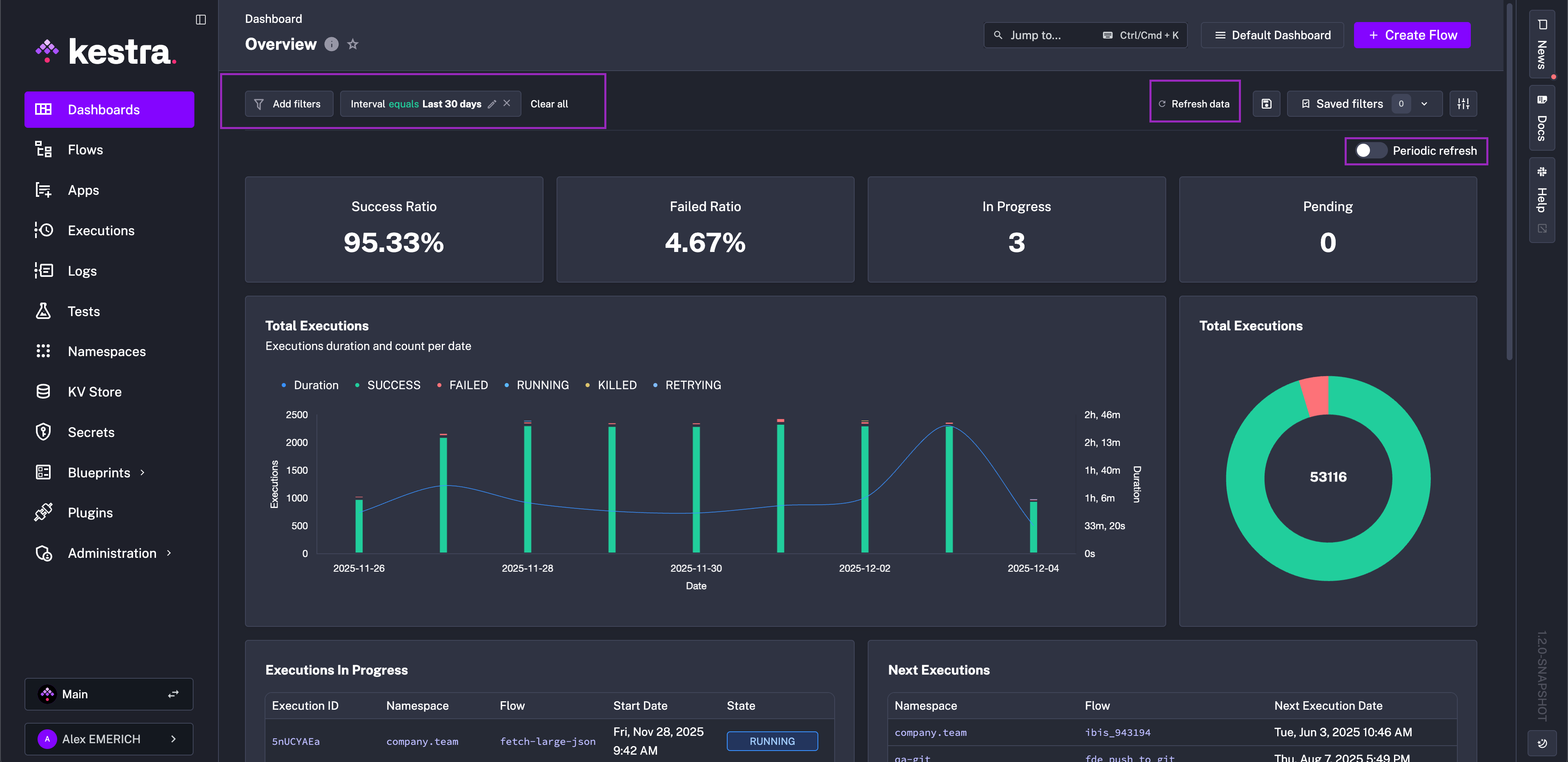

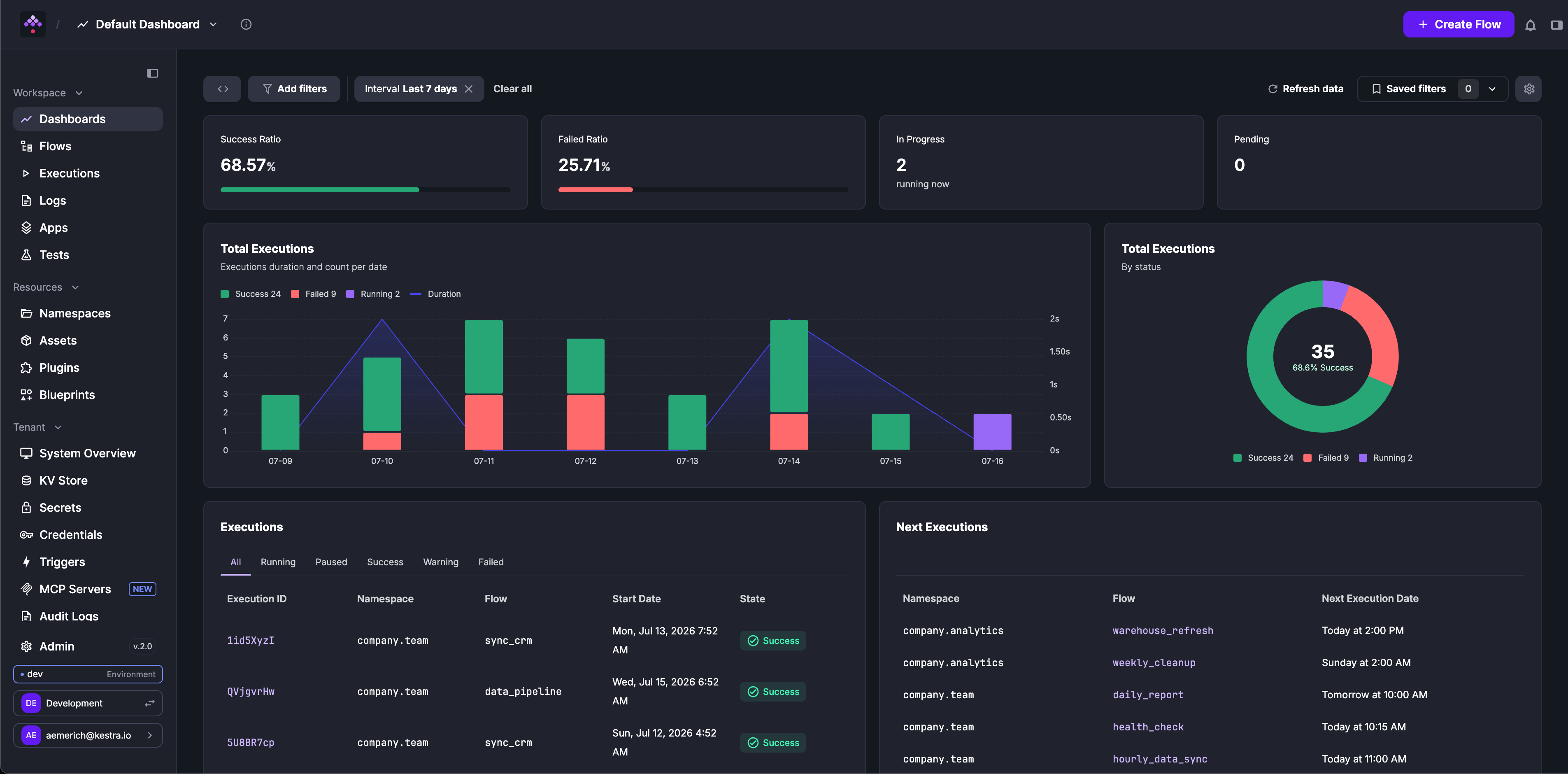

Dashboard page

The Dashboard page displays both the default dashboard and any custom dashboards you’ve created. To switch between dashboards, use the hamburger menu. If you have over 10 dashboards, type the dashboard name in the search bar to quickly find it. The same menu also lets you edit or delete existing dashboards. From your dashboard, you can apply and save filters, refresh data, and set an automatic periodic refresh.

Dashboards provide a load of useful data right at your finger tips, including:

• Executions over time
• Execution Status for Today, Yesterday as well as Last 30 days
• Executions per namespace
• Execution errors per namespace
• List of failed Executions
• List of error logs
• A ratio of execution successes to total executions

Custom dashboards

Dashboards let you define custom queries and charts to visualize data on your executions, logs, and metrics. Rather than relying only on the default dashboard on Kestra’s home screen, you can create a custom dashboard with charts that answer specific questions and track key metrics. Each chart’s configuration can be modified individually using the pencil icon in the dashboard view.

Chart types

Dashboards support six chart types: Bar, Pie, TimeSeries, Table, KPI, and Markdown. Each data chart type is composed of chartOptions and data.

A chart’s chartOptions property is where you customize display names and descriptions, and choose whether to add legends and tooltips to complement the visualization. A chart’s data property is where you specify which Kestra data to use as a column, how you want the data displayed (e.g., an aggregate count or an ORDER BY), and add any filters you might want applied to the chart (e.g., REGEX match, greater or less than, or not Null).

Each chart’s options are listed in the Chart Plugin Documentation where you can dive further into the properties of each type.

Common chart properties

All chart types share the following chartOptions properties:

Bar chart

type: io.kestra.plugin.core.dashboard.chart.Bar

Compares categorical data across groups. Requires exactly one aggregation column.

Additional chartOptions properties:

charts:
  - id: executions_per_namespace_bars
    type: io.kestra.plugin.core.dashboard.chart.Bar
    chartOptions:
      displayName: Executions per Namespace
      description: Execution count per namespace
      column: namespace
      legend:
        enabled: true
    data:
      type: io.kestra.plugin.core.dashboard.data.Executions
      columns:
        namespace:
          field: NAMESPACE
        state:
          field: STATE
        total:
          displayName: Executions
          agg: COUNT

Pie chart

type: io.kestra.plugin.core.dashboard.chart.Pie

Shows proportions and distributions. Requires exactly one aggregation column.

Additional chartOptions properties:

charts:
  - id: executions_pie
    type: io.kestra.plugin.core.dashboard.chart.Pie
    chartOptions:
      displayName: Total Executions
      description: Total executions per state
      graphStyle: DONUT
      colorByColumn: state
      legend:
        enabled: true
    data:
      type: io.kestra.plugin.core.dashboard.data.Executions
      columns:
        state:
          field: STATE
        total:
          agg: COUNT

TimeSeries chart

type: io.kestra.plugin.core.dashboard.chart.TimeSeries

Tracks trends over time. Requires between one and two aggregation columns.

Additional chartOptions properties:

The graphStyle property can be set per column in data.columns to control how each series is rendered: LINES, BARS, or POINTS. It defaults to LINES when an aggregation is set.

charts:
  - id: executions_timeseries
    type: io.kestra.plugin.core.dashboard.chart.TimeSeries
    chartOptions:
      displayName: Executions
      description: Executions last week
      column: date
      colorByColumn: state
      legend:
        enabled: true
    data:
      type: io.kestra.plugin.core.dashboard.data.Executions
      columns:
        date:
          field: START_DATE
          displayName: Date
        state:
          field: STATE
        total:
          displayName: Executions
          agg: COUNT
          graphStyle: BARS
        duration:
          displayName: Duration
          field: DURATION
          agg: SUM
          graphStyle: LINES

KPI chart

type: io.kestra.plugin.core.dashboard.chart.KPI

Displays a single key performance indicator value. Requires exactly one aggregation column. Use ExecutionsKPI, FlowsKPI, LogsKPI, or MetricsKPI as the data type for KPI charts.

To display a ratio (e.g., success rate), use the numerator property to filter the subset of rows that count toward the numerator. All rows matching the chart’s where clause form the denominator.

Additional chartOptions properties:

charts:
  - id: kpi_success_percentage
    type: io.kestra.plugin.core.dashboard.chart.KPI
    chartOptions:
      displayName: Success Ratio
      numberType: PERCENTAGE
      width: 3
    data:
      type: io.kestra.plugin.core.dashboard.data.ExecutionsKPI
      columns:
        field: FLOW_ID
        agg: COUNT
      numerator:
        - field: STATE
          type: IN
          values:
            - SUCCESS
      where:
        - field: NAMESPACE
          type: EQUAL_TO
          value: "company.team"

Table

type: io.kestra.plugin.core.dashboard.chart.Table

Displays structured data in a sortable, paginated table.

Additional chartOptions properties:

Column-level properties unique to tables:

charts:
  - id: table_metrics
    type: io.kestra.plugin.core.dashboard.chart.Table
    chartOptions:
      displayName: Sum of sales per namespace
    data:
      type: io.kestra.plugin.core.dashboard.data.Metrics
      columns:
        namespace:
          field: NAMESPACE
        value:
          field: VALUE
          agg: SUM
          columnAlignment: RIGHT
      where:
        - field: NAME
          type: EQUAL_TO
          value: sales_count
      orderBy:
        - column: value
          order: DESC

Markdown

type: io.kestra.plugin.core.dashboard.chart.Markdown

Adds explanatory text or context alongside data charts. No data property is required.

The content of a Markdown chart is set via the source property. Two source types are available:

Text — inline Markdown content:

charts:
  - id: markdown_insight
    type: io.kestra.plugin.core.dashboard.chart.Markdown
    chartOptions:
      displayName: Chart Insights
      description: How to interpret this chart
    source:
      type: Text
      content: |
        ## Execution Success Rate

        This chart displays the percentage of successful executions over time.

        - A **higher success rate** indicates stable and reliable workflows.
        - Sudden **drops** may signal issues in task execution or external dependencies.

FlowDescription — pulls the description from a specific flow:

charts:
  - id: markdown_flow_desc
    type: io.kestra.plugin.core.dashboard.chart.Markdown
    chartOptions:
      displayName: Flow Overview
    source:
      type: FlowDescription
      namespace: company.team
      flowId: my_flow

Create a new custom dashboard as code

Clicking on the + Create new dashboard button opens a code editor where you can define the dashboard layout and data sources as code.

The top-level dashboard properties are:

Below is an example of a dashboard definition that displays executions over time, flow execution success ratio, a table that uses metrics to display the sum of sales per namespace, a table that shows the log count by level per namespace, and a Markdown insights panel:

title: Getting Started
description: First custom dashboard
timeWindow:
  default: P7D
  max: P365D
charts:
  - id: executions_timeseries
    type: io.kestra.plugin.core.dashboard.chart.TimeSeries
    chartOptions:
      displayName: Executions
      description: Executions last week
      legend:
        enabled: true
      column: date
      colorByColumn: state
    data:
      type: io.kestra.plugin.core.dashboard.data.Executions
      columns:
        date:
          field: START_DATE
          displayName: Date
        state:
          field: STATE
        total:
          displayName: Executions
          agg: COUNT
          graphStyle: BARS
        duration:
          displayName: Duration
          field: DURATION
          agg: SUM
          graphStyle: LINES

  - id: kpi_success_percentage
    type: io.kestra.plugin.core.dashboard.chart.KPI
    chartOptions:
      displayName: Success Ratio
      numberType: PERCENTAGE
      width: 3
    data:
      type: io.kestra.plugin.core.dashboard.data.ExecutionsKPI
      columns:
        field: FLOW_ID
        agg: COUNT
      numerator:
        - field: STATE
          type: IN
          values:
            - SUCCESS
      where:
        - field: NAMESPACE
          type: EQUAL_TO
          value: "company.team"

  - id: table_metrics
    type: io.kestra.plugin.core.dashboard.chart.Table
    chartOptions:
      displayName: Sum of sales per namespace
    data:
      type: io.kestra.plugin.core.dashboard.data.Metrics
      columns:
        namespace:
          field: NAMESPACE
        value:
          field: VALUE
          agg: SUM
      where:
        - field: NAME
          type: EQUAL_TO
          value: sales_count
        - field: NAMESPACE
          type: IN
          values:
            - dev_graph
            - prod_graph
      orderBy:
        - column: value
          order: DESC

  - id: table_logs
    type: io.kestra.plugin.core.dashboard.chart.Table
    chartOptions:
      displayName: Log count by level for filtered namespace
    data:
      type: io.kestra.plugin.core.dashboard.data.Logs
      columns:
        level:
          field: LEVEL
        count:
          agg: COUNT
      where:
        - field: NAMESPACE
          type: IN
          values:
            - dev_graph
            - prod_graph

  - id: markdown
    type: io.kestra.plugin.core.dashboard.chart.Markdown
    chartOptions:
      displayName: Chart Insights
      description: How to interpret this chart
    source:
      type: Text
      content: |
        ## Execution Success Rate

        This chart displays the percentage of successful executions over time.

        - A **higher success rate** indicates stable and reliable workflows.
        - Sudden **drops** may signal issues in task execution or external dependencies.
        - Use this insight to identify trends and optimize performance.

Exporting data

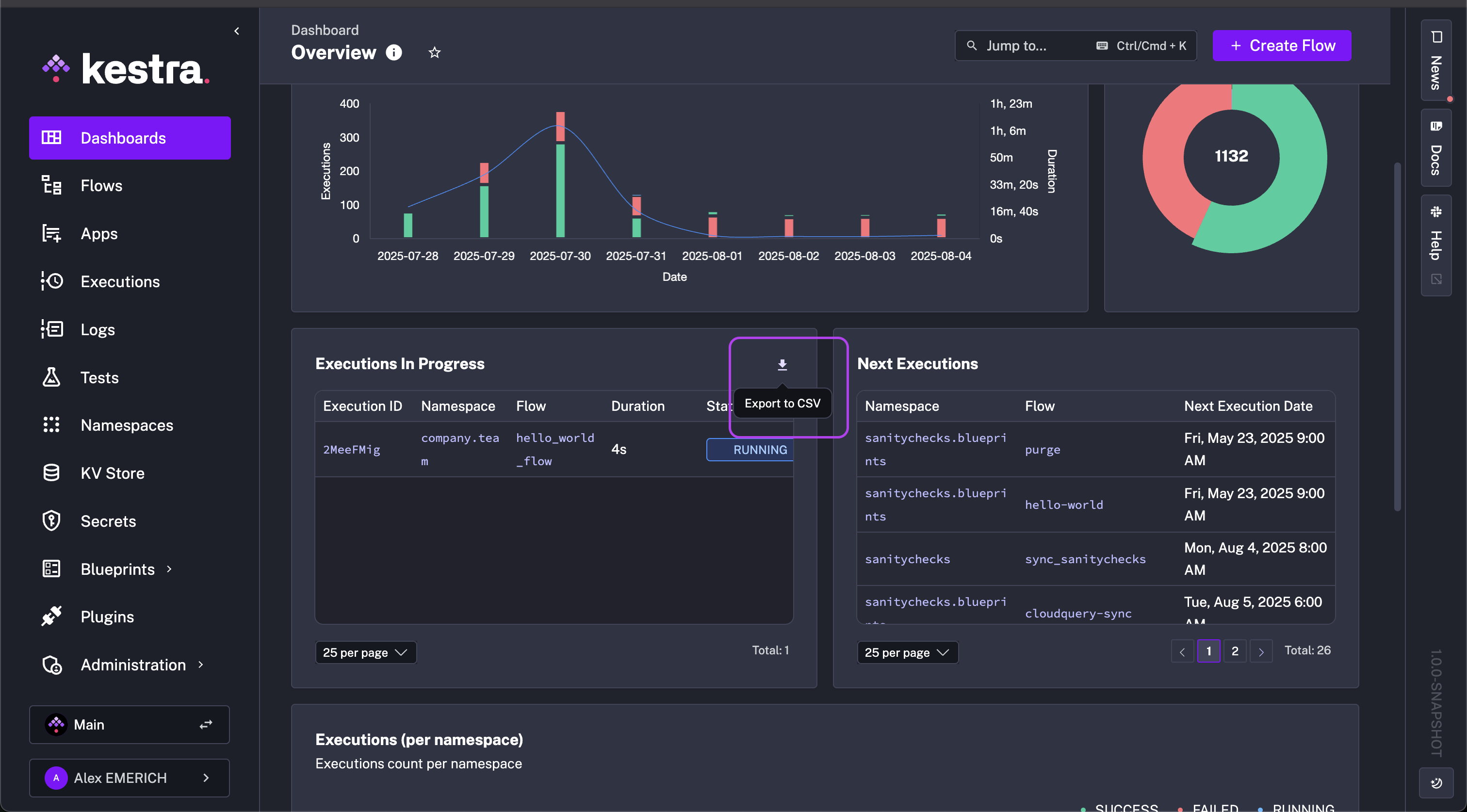

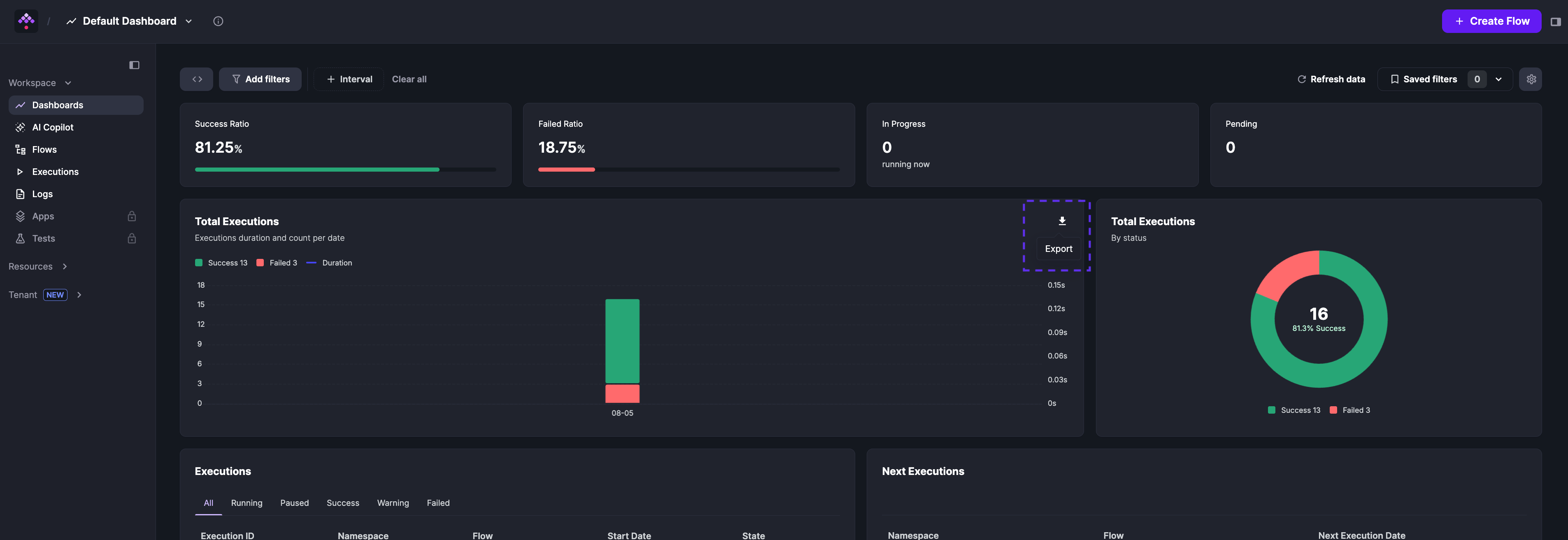

Table data can be exported as a CSV file by hovering over the top-right corner and clicking the download icon. This enables dashboard users to build custom queries in Dashboards and to export data with one click without having to worry about pagination.

Querying data

The data property of a chart defines the type of data that is queried and displayed. The type determines which columns are available.

Data source types

Dashboards can query data from these source types:

Available fields by data source

After defining the data source, specify the columns to display in the chart. Each column is defined by its field. The fields available depend on the data source type:

Executions / ExecutionsKPI:

Flows / FlowsKPI:

Logs / LogsKPI:

Metrics / MetricsKPI:

Triggers:

Column properties

Each entry in data.columns supports the following properties:

Filtering data

Use the where property to filter the result set before it is displayed. Filters can apply to any field in the data source. Multiple conditions in where are combined with AND by default. To use OR logic, set type: OR on a condition.

Available filter types:

• CONTAINS
• ENDS_WITH
• EQUAL_TO
• GREATER_THAN
• GREATER_THAN_OR_EQUAL_TO
• IN
• IS_FALSE
• IS_NOT_NULL
• IS_NULL
• IS_TRUE
• LESS_THAN
• LESS_THAN_OR_EQUAL_TO
• NOT_EQUAL_TO
• NOT_IN
• OR
• REGEX
• STARTS_WITH
