Configuration​Configuration

Configuration Reference for Kestra.

Almost everything is configurable in Kestra. This section describes the different configuration options available to Administrators.

Kestra configuration is a YAML file that can be passed as an environment variable, a file, or added directly in the Docker Compose file depending on your chosen installation option. The configuration is intended to hold deployment-specific options and it's divided into different sections, each corresponding to a different part of the system:

yaml
datasources:
  postgres:
    url: jdbc:postgresql://postgres:5432/kestra
    driverClassName: org.postgresql.Driver
    username: kestra
    password: k3str4
kestra:
  server:
    basicAuth:
      enabled: false
      username: "[email protected]" # it must be a valid email address
      password: kestra
  repository:
    type: postgres
  storage:
    type: local
    local:
      basePath: "/app/storage"
  queue:
    type: postgres
  tasks:
    tmpDir:
      path: "/tmp/kestra-wd/tmp"
  url: "http://localhost:8080/"

Setup

Kestra offers many configuration options and customization.

There are three main components that need to be configured during the initial setup:

  1. Internal Storage
  2. Queue
  3. Repository

Internal storage configuration

Kestra supports multiple internal storage types, the default being the local storage that will store data in a local folder on the host filesystem. It's recommended only for local testing as it doesn't provide resiliency or redundancy.

To choose another storage type, you will need to configure the kestra.storage.type option. Make sure to download the corresponding storage plugins first. The following example configures Google Cloud Storage as internal storage.

yaml
kestra:
  storage:
    type: gcs

Queue configuration

Kestra supports multiple queue types, which must be compatible with the repository type. The default queue depends on your chosen architecture and installation option.

The following queue types are available:

  • In-memory queue used with the in-memory repository — intended for local testing.
  • Database queue used with the database repository. It currently supports H2, MySQL, and PostgreSQL as a database.
  • Kafka queue used with the Elasticsearch repository. Those are only available in the Enterprise Edition.

To enable the PostgreSQL database queue, you need to add the kestra.queue configuration:

yaml
kestra:
  queue:
    type: postgres

Repository configuration

Kestra supports multiple repository types, which must be compatible with the queue type. Also here, the default depends on your installation option.

The following repository types are available:

  • In-memory that must be used with the in-memory queue. It is only suitable for local testing as it doesn't provide any resiliency or scalability and didn't implement all functionalities.
  • Database that must be used with the database queue. It currently supports H2, MySQL or PostgreSQL as a database.
  • Elasticsearch that must be used with the Kafka queue. Those are only available inside the Enterprise Edition.

To enable the PostgreSQL database repository, you need to add the kestra.repository configuration:

yaml
kestra:
  repository:
    type: postgres

For more details, check the database configuration and the Elasticsearch configuration.

Database

Queue and Repository

In order to configure a database backend, you need to set the kestra.queue.type and kestra.repository.type to your chosen database type. Here is an example for PostgreSQL:

yaml
kestra:
  queue:
    type: postgres
  repository:
    type: postgres

Currently, Kestra supports Postgres, H2, MySQL, and SQL Server (available in a preview in the Enterprise Edition since Kestra 0.18.0).

  • H2 can be convenient for local development.
  • For production, we recommend PostgreSQL. If PostgreSQL is not an option for you, MySQL and SQL Server can be used as well.

Check the Software Requirements section for the minimum version of each database.

Datasources

Once you added the kestra.queue.type and kestra.repository.type, you need to configure the datasources section.

Kestra uses The HikariCP connection pool under the hood, and if needed, you can configure multiple options from the HikariCP documentation directly in your datasources configuration.

PostgreSQL
MySQL
SQL Server
H2

Connection pool size

The total number of connections opened to the database will depend on your chosen architecture. Each Kestra instance will open a pool of up to the maximumPoolSize (10 by default), with a minimum size of the minimumIdle (also set to 10 by default).

  • If you deploy Kestra as a standalone server, it will open 10 connections to the database.
  • If you deploy each Kestra component separately, it will open 40 connections to the database (10 per component).
  • If you deploy each Kestra component separately with 3 replicas, it will open 120 connections to the database.

Usually, the default connection pool sizing is enough, as HikariCP is optimized to use a low number of connections.

Datasources

The table below shows the datasource configuration properties. For more details, check the HikariCP configuration documentation.

PropertiesTypeDescription
urlStringThe JDBC connection string.
catalogStringThe default catalog name to be set on connections.
schemaStringThe default schema name to be set on connections.
usernameStringThe default username used.
passwordStringThe default password to use.
transactionIsolationStringThe default transaction isolation level.
poolNameStringThe name of the connection pool.
connectionInitSqlStringThe SQL string that will be executed on all new connections when they are created, before they are added to the pool.
connectionTestQueryStringThe SQL query to be executed to test the validity of connections.
connectionTimeoutLongThe maximum number of milliseconds that a client will wait for a connection from the pool.
idleTimeoutLongThe maximum amount of time (in milliseconds) that a connection is allowed to sit idle in the pool.
minimumIdleLongThe minimum number of idle connections that HikariCP tries to maintain in the pool, including both idle and in-use connections. Defaults to the value of maximumPoolSize
initializationFailTimeoutLongThe pool initialization failure timeout.
leakDetectionThresholdLongThe amount of time that a connection can be out of the pool before a message is logged indicating a possible connection leak.
maximumPoolSizeIntThe maximum size that the pool is allowed to reach, including both idle and in-use connections. Defaults to 10.
maxLifetimeLongThe maximum lifetime of a connection in the pool.
validationTimeoutLongThe maximum number of milliseconds that the pool will wait for a connection to be validated as alive.

Here's the default HikariCP configuration:

yaml
transactionIsolation: default # driver default
poolName: HikariPool-<Generated>
connectionInitSql: null
connectionTestQuery: null
connectionTimeout: 30000 # 30 seconds
idleTimeout: 600000 # 10 minutes
minimumIdle: 10 # same as maximum-pool-size
initializationFailTimeout: 1
leakDetectionThreshold: 0
maximumPoolSize: 10
maxLifetime: 1800000 # 30 minutes
validationTimeout: 5000

JDBC Queues

Kestra database queues simulate queuing doing long polling. They query a queues table to detect new messages.

You can change these parameters to reduce the polling latency, but be aware it will increase the load on the database:

  • kestra.jdbc.queues.pollSize: the maximum number of queues items fetched by each poll.
  • kestra.jdbc.queues.minPollInterval: the minimum duration between 2 polls.
  • kestra.jdbc.queues.maxPollInterval: the maximum duration between 2 polls.
  • kestra.jdbc.queues.pollSwitchInterval: the delay for switching from min-poll-interval to max-poll-interval when no message is received. (ex: when one message is received, the minPollInterval is used, if no new message arrived within pollSwitchInterval, we switch to maxPollInterval).

Here is the default configuration:

yaml
kestra:
  jdbc:
    queues:
      pollSize: 100
      minPollInterval: 25ms
      maxPollInterval: 1000ms
      pollSwitchInterval: 5s

JDBC Cleaner

Kestra cleans the queues table periodically to optimize storage and performance. You can control how often you want this cleaning to happen, and how long messages should be kept in the queues table using the kestra.jdbc.cleaner configuration.

Here is the default configuration:

yaml
kestra:
  jdbc:
    cleaner:
      initialDelay: 1h
      fixedDelay: 1h
      retention: 7d

Protecting against too big messages

The database backend has no limit on the size of messages it can handle. However, as messages are loaded into memory, this can endanger Kestra itself and push pressure on memory usage.

To prevent that, you can configure a functionality that will refuse to store too big messages and fail the execution instead.

The following configuration will refuse messages that exceed 1MiB by failing the execution.

yaml
kestra:
  jdbc:
    queues:
      messageProtection:
        enabled: true
        limit: 1048576

Telemetry

By default, the kestra.anonymousUsageReport is enabled to send anonymous usage data to Kestra to help us improve the product. If you want to disable it, you can set it to false:

yaml
kestra:
  anonymousUsageReport:
    enabled: false

You can change the initial delay (default 5m):

yaml
kestra:
  anonymousUsageReport:
    initialDelay: 5m

You can change the fixed delay (default 1h):

yaml
kestra:
  anonymousUsageReport:
    fixedDelay: 1h

Elasticsearch

Elasticsearch is an Enterprise Edition functionality.

The kestra.elasticsearch setting allows you to configure the way Kestra connects to the Elasticsearch cluster.

Here is a minimal configuration example:

yaml
kestra:
  elasticsearch:
    client:
      httpHosts: "http://localhost:9200"
  repository:
    type: elasticsearch

Here is another example with a secured Elasticsearch cluster with basic authentication:

yaml
kestra:
  elasticsearch:
    client:
      httpHosts:
        - "http://node-1:9200"
        - "http://node-2:9200"
        - "http://node-3:9200"
      basicAuth:
        username: "<your-user>"
        password: "<your-password>"
  repository:
    type: elasticsearch

Trust all SSL certificates

Using the kestra.elasticsearch.client.trustAllSsl configuration, you can trust all SSL certificates during the connection. This is useful for development servers with self-signed certificates.

yaml
kestra:
  elasticsearch:
    client:
      httpHosts: "https://localhost:9200"
      trustAllSsl: true

Indices Prefix

The kestra.elasticsearch.defaults.indicePrefix configuration allows to change the prefix of the indices. By default, the prefix will be kestra_.

For example, if you want to share a common Elasticsearch cluster for multiple instances of Kestra, add a different prefix for each instance as follows:

yaml
kestra:
  elasticsearch:
    defaults:
      indicePrefix: "uat_kestra"

Indices Split

By default, a unique indices are used for all different data.

Using the kestra.elasticsearch.indices configuration, you can split the indices by type. This is useful for large instances where you may want to split the index by day, week or month to avoid having large indices in ElasticSearch.

Currently, the executions, logs and metrics can be split, and we support all these split types:

  • DAILY
  • WEEKLY
  • MONTHLY
  • YEARLY
yaml
kestra:
  elasticsearch:
    indices:
      executions:
        alias: daily
      logs:
        alias: daily
      metrics:
        alias: daily

Index Rotation

When you enable index rotation, it creates an alias and one index per periodicity (day, week, etc.).

It's safe to enable it on an existing instance however the alias will clash with the existing index so you should move the existing index, for example change kestra_logs to kestra_logs-1 before switching to the alias.

As indexes will be created with name-periodicity using the -1 suffix, make sure you will still include the old data (until you make the decision to purge it).

Be careful that not all indexes can be safely purged. You should only enable alias for historical data that keeps growing (like logs, metrics and executions).

It's safe to disable aliases but in the case existing data would not be recovered anymore.

It is totally safe to switch from one periodicity to another as the alias is for name-* so the periodicity is not important.

EE Java Security

You can use the kestra.ee.javaSecurity configuration to opt-in to isolation of file systems using advanced Kestra EE Java security:

yaml
kestra:
  ee:
    javaSecurity:
      enabled: true
      forbiddenPaths:
        - /etc/
      authorizedClassPrefix:
        - io.kestra.plugin.core
        - io.kestra.plugin.gcp

Forbidden Paths

The kestra.ee.javaSecurity.forbiddenPaths configuration is a list of paths on the file system that the Kestra Worker will be forbidden to read or write to. This can be useful to protect Kestra configuration files.

Authorized Class Prefix

The kestra.ee.javaSecurity.authorizedClassPrefix configuration is a list of classes that can create threads. Here you can set a list of prefixes (namespace) classes that will be allowed. All others will be refused.

Forbidden Class Prefix

The kestra.ee.javaSecurity.forbiddenClassPrefix configuration is a list of classes that can't create any threads. Others plugins will be authorized.

yaml
kestra:
  ee:
    javaSecurity:
      enabled: true
      forbiddenClassPrefix:
        - io.kestra.plugin.scripts

EE License

To use Kestra Enterprise Edition, you will need a valid license configured under the kestra.ee.license configuration. The license is unique to your organization. If you need a license, please reach out to our Sales team at [email protected].

The license is set up using two configuration properties: id and key.

  • kestra.ee.license.id: license identifier.
  • kestra.ee.license.key: license key.

When you launch Kestra Enterprise Edition, it will check the license and display the validation step in the log.

Multi-tenancy

By default, multi-tenancy is disabled. To enable it, add the kestra.ee.tenants configuration:

yaml
kestra:
  ee:
    tenants:
      enabled: true

Default Tenant

By default, multi-tenancy is disabled, and the default tenant is set to true. Once you enable multi-tenancy, you can set the default tenant to false using the kestra.ee.tenants.defaultTenant configuration:

yaml
kestra:
  ee:
    tenants:
      enabled: true
      defaultTenant: false

This will enable multi-tenancy and disable the default tenant (best practice). It is recommended to disable it so that your Kestra instance includes only the tenants you explicitly create.

Encryption

Kestra 0.15.0 and later supports encryption of sensitive data. This allows inputs and outputs to be automatically encrypted and decrypted when they are stored in the database.

To enable encryption, you need to provide a base64-encoded secret key in the kestra.encryption configuration:

yaml
kestra:
  encryption:
    secretKey: BASE64_ENCODED_STRING_OF_32_CHARCTERS

To generate a 32-character string and then base64 encode it, you can use the defacto standard for cryptography, OpenSSL:

bash
openssl rand -base64 32

If you don't have OpenSSL installed, you can use the following Bash commands to generate a base64-encoded 32-character encryption key:

bash
random_string=$(LC_ALL=C tr -dc 'A-Za-z0-9' < /dev/urandom | head -c 32)
echo "$random_string" | base64

If you run Kestra with Docker-Compose, here is how you can add that key in the KESTRA_CONFIGURATION environment variable in your docker-compose.yml file:

yaml
  kestra:
    image: kestra/kestra:latest
    environment:
      KESTRA_CONFIGURATION: |
        kestra:
          encryption:
            secretKey: NWRhUDc5TERWY2QyMDhSSHhfeWYzbjJpNE5vb3M5NnY=

Once the secret key is set, you can use an input and output of type SECRET:

yaml
id: my_secret_flow
namespace: company.team

inputs:
  - id: secret
    type: SECRET

tasks:
  - id: mytask
    type: io.kestra.plugin.core.log.Log
    message: task that needs the secret to connect to an external system

outputs:
  - id: secret_output
    type: SECRET
    value: "{{ inputs.secret }}"

When executing this flow, you will see a masked field:

secret1

In the Execution Overview tab, you will see a masked value of the secret.

Endpoints

Management endpoints can be set up from the Micronaut endpoint configuration. You can also secure all endpoints with basic authentication using the endpoints configuration:

yaml
endpoints:
  all:
    basicAuth:
      username: your-user
      password: your-password

Environment

Here are the configuration options for the environment UI display.

You can add a label and a color to identify your environment in the UI by adding the kestra.environment configuration:

yaml
kestra:
  environment:
    name: Production
    color: "#FCB37C"

You can also set that environment name and color directly from the UI. Just go to the settings page and type the desired Environment name and select the color.

env_color

JVM

All JVM options can be passed in an environment variable named JAVA_OPTS. You can use it to change all JVM options available, such as memory, encoding, etc.

Example:

shell
export JAVA_OPTS="-Duser.timezone=Europe/Paris"

Timezone

By default, Kestra will handle all dates using your system's timezone. You can change the timezone using the user.timezone JVM option.

Changing the timezone will mostly affect:

  • scheduler: by default, all schedule dates are UTC; changing the Java timezone will allow scheduling the flow in your timezone.
  • logs display: in your configured timezone.

Indexer

Indexer send data from Kafka to Elasticsearch using Bulk Request. You can control the batch size and frequency to reduce the load on ElasticSearch using the kestra.indexer configuration. This will delay some information on the UI raising that values, example:

yaml
kestra:
  indexer:
    batchSize: 500 # (default value, any integer > 0)
    batchDuration: PT1S # (default value, any duration)

Kafka

Kafka is part of the Enterprise Edition.

You can set up your Kafka connection using the kestra.kafka configuration.

Client Properties

The most important configuration step is defining how Kestra should connect to the Kafka cluster. You can set this up using the kestra.kafka.client.properties configuration.

Here is a minimal configuration example:

yaml
kestra:
  kafka:
    client:
      properties:
        bootstrap.servers: "localhost:9092"
  queue:
    type: kafka

Here is another example with SSL configuration:

yaml
kestra:
  kafka:
    client:
      properties:
        bootstrap.servers: "host:port"
        security.protocol: "SSL"
        ssl.endpoint.identification.algorithm: ""
        ssl.key.password: "<your-password>"
        ssl.keystore.location: "/etc/ssl/private/keystore.p12"
        ssl.keystore.password: "<your-password>"
        ssl.keystore.type: "PKCS12"
        ssl.truststore.location: "/etc/ssl/private/truststore.jks"
        ssl.truststore.password: "<your-password>"
  queue:
    type: kafka

kestra.kafka.client.properties allows passing any standard Kafka properties. More details can be found on the Kafka Documentation.

Topics

By default, Kestra automatically creates all the needed topics. You can change the partition count and replication factor of these topics using the kestra.kafka.defaults.topic configuration.

  • kestra.kafka.defaults.topic.partitions: (default 16)
  • kestra.kafka.defaults.topic.replicationFactor: (default 1)

The number of topic's partitions limits the number of concurrently processing server instances consuming that particular topic. For example, using 16 partitions for every topic limits the effective number of instances to 16 executor servers, 16 worker servers, etc.

Consumer, Producer and Stream properties

You can change the default properties of the Kafka client used by Kestra using the kestra.kafka.defaults.[consumer|producer|stream].properties configuration. These allow you to change any available properties.

Here is the default configuration:

yaml
kestra:
  kafka:
    defaults:
      consumer:
        properties:
          isolation.level: "read_committed"
          auto.offset.reset: "earliest"
          enable.auto.commit: "false"

      producer:
        properties:
          acks: "all"
          compression.type: "lz4"
          max.request.size: "10485760"

      stream:
        properties:
          processing.guarantee: "exactly_once"
          replication.factor: "${kestra.kafka.defaults.topic.replicationFactor}"
          acks: "all"
          compression.type: "lz4"
          max.request.size: "10485760"
          state.dir: "/tmp/kafka-streams"

Topic names and properties

All the topics used by Kestra are declared with the default name and properties. You can change the default values using the kestra.kafka.defaults.topics configuration:

  • kestra.kafka.defaults.topics.{{topic}}.name: Change the name of the topic.
  • kestra.kafka.defaults.topics.{{topic}}.properties: Change the default properties used during topic automatic creation.

You can see default configuration on this file.

Consumer Prefix

The kestra.kafka.defaults.consumerPrefix configuration allows changing the consumer-group prefix. By default, the prefix will be kestra.

For example, if you want to share a common Kafka cluster for multiple instances of Kestra, you must configure a different prefix for each instance like this:

yaml
kestra:
  kafka:
    defaults:
      consumerPrefix: "uat_kestra"

Topic Prefix

The kestra.kafka.defaults.topicPrefix configuration allows changing the topic name prefix. By default, the prefix will be kestra_.

For example, if you want to share a common Kafka cluster for multiple instances of Kestra, add a different prefix for each instance like this:

yaml
kestra:
  kafka:
    defaults:
      topicPrefix: "uat_kestra"

Client Loggers

The kestra.kafka.client.loggers configuration allows enabling logging for all messages processed by the Kafka cluster. Use it to debug all the messages consumed or produced on the Kafka cluster.

yaml
kestra:
  kafka:
    client:
      loggers:
        - level: INFO # mandatory: ERROR, WARN, INFO, DEBUG, TRACE, the logger must be configured at least at this level for class io.kestra.runner.kafka.AbstractInterceptor
          type: PRODUCER # optional: CONSUMER or PRODUCER
          topicRegexp: "kestra_(executions|workertaskresult)" # optional: a regexp validating the topic
          keyRegexp: .*parallel.* # optional: a regexp validating the key
          valueRegexp: .*parallel.* # optional: a regexp validating the json full body

Kafka Stream State Directory

Kestra uses the Kafka Stream framework, this framework uses a local directory for state persistence. By default, the state directory is /tmp/kafka-streams and can be configured using the kestra.kafka.stream.properties.state.dir configuration property.

This directory should not be purged while the application runs but can be purged between restarts. If persisted between restarts, the startup time could be improved as the state of the Kafka Stream will be recovered from the directory.

It is advised to purge this directory before a Kestra update, if not, an error message may be displayed in the log that can be safely ignored.

Topic retention

Each Kafka topic used by Kestra is configurable using the following configuration property:

yaml
kestra:
  kafka:
    topics:
      execution:
        properties:
          kafka.property: value

By default, except for topics where we need unlimited retention as they store referential data like flow or trigger definition, all topics are configured with a default retention of 7 days.

For example, for the topic storing executions, you can configure the retention via this configuration property:

yaml
  kafka:
    topics:
      execution:
        properties:
          retention.ms: "86400000"

Protecting against too big messages

Kafka topic has a limit of the size of messages it can handle. By default, we set this limit to 10MiB. If a message exceeds this limit, it may crash the executor and Kestra will stop.

To prevent that, you can configure a functionality that will automatically store too big messages to the internal storage.

yaml
kestra:
  kafka:
    messageProtection:
      enabled: true

The hard-limit is not mandatory, in this case messages of any size will be accepted.

Listeners

Listeners are deprecated and disabled by default since the 0.11.0 release. You can re-enable them using the kestra.listeners configuration:

yaml
kestra:
  listeners:
    enabled: true

Logger

You can change the log behavior in Kestra by adjusting the logger configuration parameters:

yaml
logger:
  levels:
    io.kestra.runner: TRACE
    org.elasticsearch.client: TRACE
    org.elasticsearch.client.sniffer: TRACE
    org.apache.kafka: DEBUG
    io.netty.handler.logging: TRACE

Access Log configuration

You can configure the access log from the webserver using the micronaut.server.netty.accessLogger configuration:

  • micronaut.server.netty.accessLogger.enabled: enable access log from webserver (default true).
  • micronaut.server.netty.accessLogger.name: logger name (default io.kestra.webserver.access).
  • micronaut.server.netty.accessLogger.format: access log format (default "%{yyyy-MM-dd'T'HH:mm:ss.SSS'Z'}t | %r | status: %s | ip: %a | length: %b | duration: %D").
  • micronaut.server.netty.accessLogger.exclusions: list of regexp to define which log to exclude.

Here are the default values:

yaml
micronaut:
  server:
    netty:
      accessLogger:
        enabled: true
        name: io.kestra.webserver.access
        format: "[Date: {}] [Duration: {} ms] [Method: {}] [Url: {}] [Status: {}] [Length: {}] [Ip: {}] [Port: {}]"
        exclusions:
          - /ui/.+
          - /health
          - /prometheus

Log Format

We are using Logback to handle log. You change the format of the log format, and we provide some default and common one configuring a logback configuration files.

If you want to customize the log format, you can create a logback.xml file and add it to the classpath. Then, add a new JAVA_OPTS environment variable: "-Dlogback.configurationFile=file:/path/to/your/configuration/logback.xml"

We provide some predefined configuration, and some example of the logback.xml files:

GCP

xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false">
    <include resource="logback/base.xml" />
    <include resource="logback/gcp.xml" />

    <root level="WARN">
        <appender-ref ref="CONSOLE_JSON_OUT" />
        <appender-ref ref="CONSOLE_JSON_ERR" />
    </root>
</configuration>

Elastic Common Schema (ECS) format

xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
  <include resource="logback/base.xml" />
  <include resource="logback/ecs.xml" />

  <root level="WARN">
    <appender-ref ref="CONSOLE_ECS_OUT" />
    <appender-ref ref="CONSOLE_ECS_ERR" />
  </root>
</configuration>

Metrics

You can set the prefix for all Kestra metrics using the kestra.metrics configuration:

yaml
kestra:
  metrics:
    prefix: kestra

Micronaut

Given that Kestra is a Java-based application built on top of Micronaut, there are multiple Micronaut settings that you can configure based on your needs using the micronaut configuration.

To see all the possible configuration options, check the official Micronaut guide.

Below are some tips on the Micronaut configuration options which are most relevant to Kestra.

Configure port

yaml
micronaut:
  server:
    port: 8086

Configure SSL

This guide will help you configure SSL with Micronaut. A final working configuration would look as follows (considering you would use environment variables injection for passwords):

yaml
micronaut:
  security:
    x509:
      enabled: true
  ssl:
    enabled: true
  server:
    ssl:
      clientAuthentication: need
      keyStore:
        path: classpath:ssl/keystore.p12
        password: ${KEYSTORE_PASSWORD}
        type: PKCS12
      trustStore:
        path: classpath:ssl/truststore.jks
        password: ${TRUSTSTORE_PASSWORD}
        type: JKS

Timeout and max uploaded file size

Below is the default configuration for the timeout and max uploaded file size. You can change these values as needed:

yaml
micronaut:
  server:
    maxRequestSize: 10GB
    multipart:
      maxFileSize: 10GB
      disk: true
    readIdleTimeout: 60m
    writeIdleTimeout: 60m
    idleTimeout: 60m
    netty:
      maxChunkSize: 10MB

Changing base path

If behind a reverse proxy, you can change the base path of the application with the following configuration:

yaml
micronaut:
  server:
    contextPath: "kestra-prd"

Changing host resolution

If behind a reverse proxy, you can change host resolution (http/https/domain name) providing the header sent by your reverse proxy:

yaml
micronaut:
  server:
    hostResolution:
      hostHeader: Host
      protocolHeader: X-Forwarded-Proto

Configuring CORS

In case you run into issues related to CORS policy, say while calling the webhook API from a JS application, you can enable the processing of CORS requests with the following configuration:

yaml
micronaut:
  server:
    cors:
      enabled: true

For more detailed changes like allowing only specific origins or specific methods, you can refer this guide.

Plugins

Maven repositories used by the command kestra plugins install can be configured using the kestra.plugins configuration.

Maven Central is mandatory for Kestra and its plugins. However, you can add your own (Maven) repository in order to download your custom plugins using the following configuration:

yaml
kestra:
  plugins:
    repositories:
      central:
        url: https://repo.maven.apache.org/maven2/
      jcenter:
        url: https://jcenter.bintray.com/
      kestra:
        url: https://dl.bintray.com/kestra/maven

Enable or disable features

The configuration of plugins section can be also used to enable or disable some features of specific Kestra plugins, or to set some default values for them.

Here is an example of how to enable outputs for Subflow and Flow tasks:

yaml
kestra:
  plugins:
    configurations:
      - type: io.kestra.plugin.core.flow.Subflow
        values:
          outputs:
            enabled: true # for backward-compatibility -- false by default
      - type: io.kestra.plugin.core.flow.Flow
        values:
          outputs:
            enabled: true # for backward-compatibility -- false by default

By default, the outputs property of a parent flow's Subflow task is deprecated in favor of flow outputs in Kestra 0.15.0 and higher. However, setting such configuration will keep the old behavior with the outputs property.

Set default values

You can also set default values for a plugin. For example, starting from Kestra 0.15.0, you can set the default value for the recoverMissedSchedules property of the Schedule trigger to NONE to avoid recovering missed scheduled executions after a server restart:

yaml
kestra:
  plugins:
    configurations:
      - type: io.kestra.plugin.core.trigger.Schedule
        values:
          # Available options: LAST | NONE | ALL. The default is ALL
          recoverMissedSchedules: NONE

Before 0.15, Kestra was always recovering missed schedules. This means that if your server was down for a few hours, Kestra would recover all missed schedules when it was back up. This behavior was not always desirable, as often the recovery of missed schedules is not necessary e.g. during a planned maintenance window. This is why, starting from Kestra 0.15 release, you can customize the recoverMissedSchedules property and choose whether you want to recover missed schedules or not.

The recoverMissedSchedules configuration can be set to ALL, NONE or LAST:

  • ALL: Kestra will recover all missed schedules. This is the default value.
  • NONE: Kestra will not recover any missed schedules.
  • LAST: Kestra will recover only the last missed schedule for each flow.

Note that this is a global configuration that will apply to all flows, unless explicitly overwritten within the flow definition:

yaml
triggers:
  - id: schedule
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "*/15 * * * *"
    recoverMissedSchedules: NONE

In this example, the recoverMissedSchedules is set to NONE, which means that Kestra will not recover any missed schedules for this specific flow regardless of the global configuration.

Allowed plugins

You can restrict which plugins can be used in a Kestra instance by configuring an allowlist / exclude list using regexes.

The following configuration only allow plugin from the io.kestra package and disallow the io.kestra.plugin.core.debug.Echo plugin.

yaml
kestra:
  plugins:
    security:
      includes:
        - io.kestra.*
      excludes:
        - io.kestra.plugin.core.debug.Echo

Plugin defaults

You can provide global plugin defaults using the kestra.plugins.defaults configuration. Those will be applied to each task on your cluster if a property is not defined on flows or tasks. Plugin defaults allow ensuring a property is defined at a default value for these tasks.

yaml
kestra:
  plugins:
    defaults:
    - type: io.kestra.plugin.core.log.Log
      values:
        level: ERROR

Forced plugin defaults:

  • ensure a property is set globally for a task, and no task can override it
  • are critical for security and governance, e.g. to enforce Shell tasks to run as Docker containers.
yaml
kestra:
  plugins:
    defaults:
      - type: io.kestra.plugin.scripts.shell.Script
        forced: true
        values:
          taskRunner:
            type: io.kestra.plugin.scripts.runner.docker.Docker

Retries

Kestra uses external storage and secrets so that your private data and secrets are stored in a secure way in your private infrastructure. These external systems communicate with Kestra through APIs. Those API calls, however, might eperience transient failures. To handle these transient failures, Kestra allows you to set up automatic retries using the kestra.retries configuration.

Here are the available retry configuration options:

  • kestra.retries.attempts: the max number of retries (default 5)
  • kestra.retries.delay: the initial delay between retries (default 1s)
  • kestra.retries.maxDelay: the max amount of time to retry (default undefined)
  • kestra.retries.multiplier: the multiplier of delay between each attempt (default 2.0)

In order to globally configure retries for tasks, you can use the plugin defaults with a global scope tied to the main io.kestra plugin path as follows:

yaml
- type: io.kestra
  retry:
    type: constant # type: string
    interval: PT5M # type: Duration
    maxDuration: PT1H # type: Duration
    maxAttempt: 3 # type: int
    warningOnRetry: true # type: boolean, default is false

Secret Managers

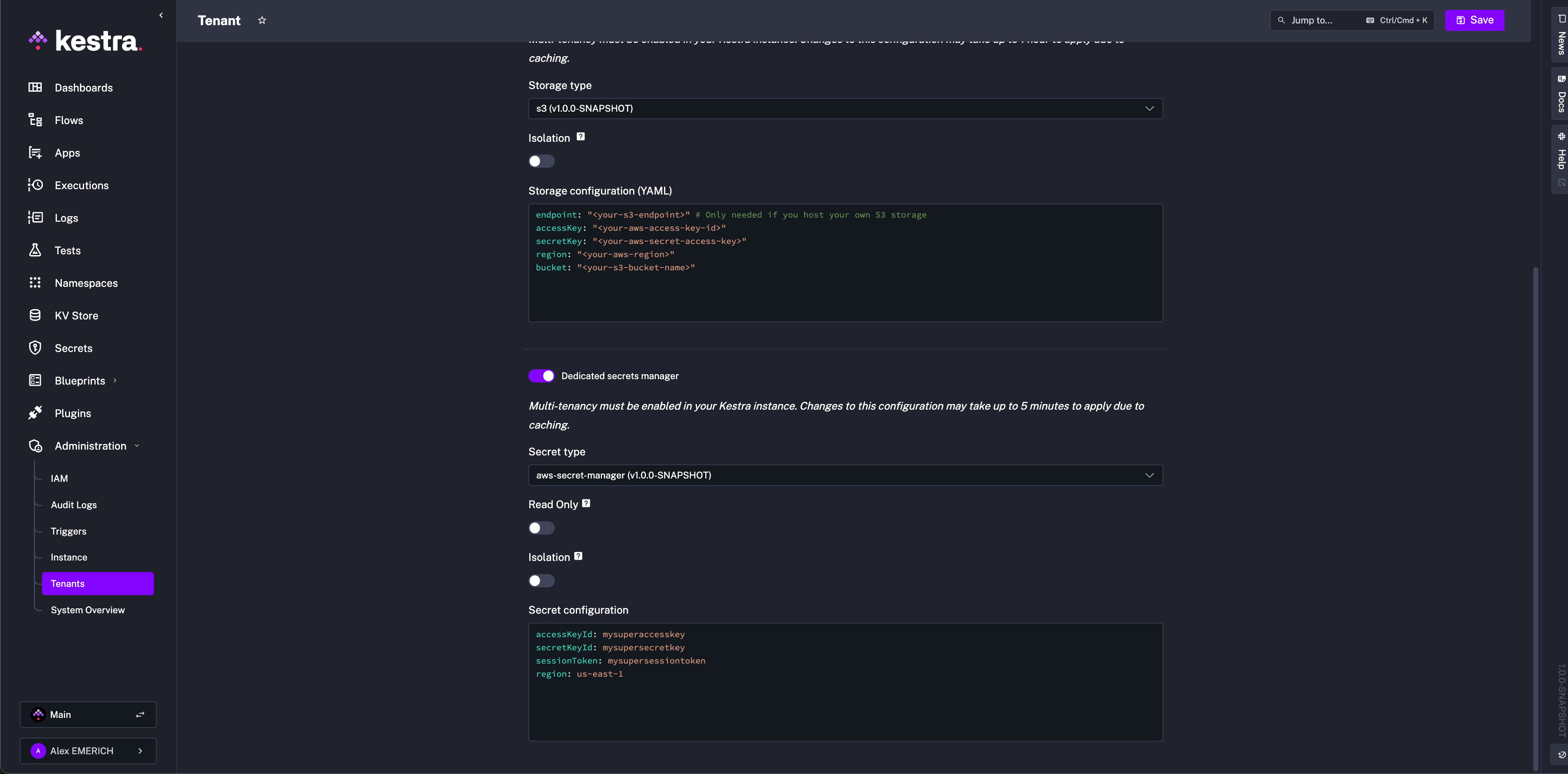

You can configure the secret manager backend using the kestra.secret configuration.

AWS Secret Manager

In order to use AWS Secret Manager as a secrets backend, make sure that your AWS IAM user or role have the required permissions including CreateSecret, DeleteSecret, DescribeSecret, GetSecretValue, ListSecrets, PutSecretValue, RestoreSecret, TagResource, UpdateSecret.

yaml
kestra:
  secret:
    type: aws-secret-manager
    awsSecretManager:
      accessKeyId: mysuperaccesskey
      secretKeyId: mysupersecretkey
      sessionToken: mysupersessiontoken
      region: us-east-1

Azure Key Vault

To configure Azure Key Vault as your secrets backend, make sure that kestra's user or service principal (clientId) has the necessary permissions, including "Get", "List", "Set", "Delete", "Recover", "Backup", "Restore", "Purge". Then, paste the clientSecret from the Azure portal to the clientSecret property in the configuration below.

yaml
kestra:
  secret:
    type: azure-key-vault
    azureKeyVault:
      clientSecret:
        tenantId: "id"
        clientId: "id"
        clientSecret: "secret"

Elasticsearch

Elasticsearch backend stores secrets with an additional layer of security using AES encryption. You will need to provide a cryptographic key (at least 32 characters-long string) in order to encrypt and decrypt secrets stored in Elasticsearch.

yaml
kestra:
  secret:
    type: elasticsearch
    elasticsearch:
      secret: "a-secure-32-character-minimum-key"

Google Secret Manager

To leverage Google Secret Manager as your secrets backend, you will need to create a service account with the roles/secretmanager.admin permission. Paste the contents of the service account JSON key file to the serviceAccount property in the configuration below. Alternatively, set the GOOGLE_APPLICATION_CREDENTIALS environment variable to point to the credentials file.

yaml
kestra:
  secret:
    type: google-secret-manager
    googleSecretManager:
      project: gcp-project-id
      serviceAccount: |
        Paste here the contents of the service account JSON key file

HashiCorp Vault

Kestra currently supports the KV secrets engine - version 2 as a secrets backend.

To authenticate Kestra with HashiCorp Vault, you can use Userpass, Token or AppRole Auth Methods, all of which requires full read and write policies. You can optionally change root-engine or namespace (if you use Vault Enterprise).

Userpass Auth Method:

yaml
kestra:
  secret:
    type: vault
    vault:
      address: "http://localhostt:8200"
      password:
        user: john
        password: foo
    cache:
      enabled: true
      maximumSize: 1000
      expireAfterWrite: 60s

Token Auth Method:

yaml
kestra:
  secret:
    type: vault
    vault:
      address: "http://localhostt:8200"
      token:
        token: your-secret-token

AppRole Auth Method:

yaml
kestra:
  secret:
    type: vault
    vault:
      address: "http://localhostt:8200"
      appRole:
        path: approle
        roleId: your-role-id
        secretId: your-secret-id

JDBC

yaml
kestra:
  secret:
    type: jdbc
    jdbc:
      secret: "your-secret-key"

Secret Tags

yaml
kestra:
  secret:
    <secret-type>:
      # a map of default key/value tags
      tags:
        application: kestra-production

Secret Cache

yaml
kestra:
  secret:
    cache:
      enabled: true
      maximumSize: 1000
      expireAfterWrite: 60s

Security

Using the kestra.security configuration, you can set up multiple security features of Kestra.

Super-Admin

The most powerful user in Kestra is the SuperAdmin

You can create a SuperAdmin user from the kestra.security.superAdmin configuration.

The super-admin requires three properties:

  • kestra.security.superAdmin.username: the username of the super-admin
  • kestra.security.superAdmin.password: the password of the super-admin
  • kestra.security.superAdmin.tenantAdminAccess: a list of tenants that the super-admin can access
    • This property can be omitted if you do not use multi-tenancy
    • If a Tenant does not exists, it will be created
    • At each startup, this user is checked and if the list of access permissions has been modified, new access permissions can be created, but none will be removed
yaml
kestra:
  security:
    superAdmin:
      username: your_username
      password: ${KESTRA_SUPERADMIN_PASSWORD}
      tenantAdminAccess:
        - <optional>

Default Role

The default role is the role that will be assigned to a new user when it is created.

You can define the default role using the kestra.security.defaultRole configuration. Whenever you start Kestra, the default role will be checked and created if it doesn't exist.

The default role requires three properties:

  • kestra.security.defaultRole.name: the name of the default role
  • kestra.security.defaultRole.description: the description of the default role
  • kestra.security.defaultRole.permissions: the permissions of the default role
yaml
kestra:
  security:
    defaultRole:
      name: default
      description: "Default role"
      permissions:
        FLOW: ["CREATE", "READ", "UPDATE", "DELETE"]

When using multitenancy, the default role will be added to every tenant and will grant specified access permissions to new users across all tenants. If you prefer to restrict the default role to only allow access to a given tenant e.g. staging, you can add the tenantId property as follows:

yaml
kestra:
  security:
    defaultRole:
      name: default
      description: "Default role"
      permissions:
        FLOW: ["CREATE", "READ", "UPDATE", "DELETE"]
      tenantId: staging

Server

Using the kestra.server configuration, you can set up multiple server-specific functionalities.

HTTP Basic Authentication

You can protect your Kestra installation with HTTP Basic Authentication.

yaml
kestra:
  server:
    basicAuth:
      enabled: true
      username: admin
      password: kestra

HTTP Basic Authentication is disabled by default - you can enable it in your Kestra configuration, as shown above. If you need more fine-grained control over user and access management, the Enterprise Edition provides additional authentication mechanisms, including features such as SSO and RBAC. For more details, see the Authentication page.

Delete configuration files

kestra.configurations.deleteFilesOnStart:

This setting allows to delete all configuration files after the server startup. It prevents the ability to read configuration files (that may contain your secrets) from a Bash task for example. The server will keep these values in memory, and they won't be accessible from tasks.

TypeBoolean
Defaultfalse

Server Liveness & Heartbeats

Kestra's servers use a heartbeat mechanism to periodically send their current state to the Kestra backend, indicating their liveness. That mechanism is crucial for the timely detection of server failures and for ensuring seamless continuity in workflow executions.

Here are the configuration parameters for all server types starting from Kestra 0.16.0.

Note that although it's recommended to deploy the same configuration for all Kestra servers, it's perfectly safe to set different values for those parameters depending on the server type.

kestra.server.liveness.enabled

Enable the liveness probe for the server. This property controls whether a server can be detected as DISCONNECTED or not. Must always be true for production environment.

TypeBoolean
Defaulttrue

kestra.server.liveness.interval

Frequency at which an Executor will check the liveness of connected servers.

TypeDuration
Default5s

kestra.server.liveness.timeout

The time an Executor will wait for a state update from a server before considering it as DISCONNECTED.

TypeDuration
Default45s

kestra.server.liveness.initialDelay

The initial delay after which an Executor will start monitoring the liveliness of a server joining the cluster.

TypeDuration
Default45s

kestra.server.liveness.heartbeatInterval

The interval at which a server will send a heartbeat indicating its current state. Must be strictly inferior to kestra.server.liveness.timeout.

TypeDuration
Default3s

Here is the default and recommended configuration for production ():

For JDBC deployment-mode (OSS):

yaml
kestra:
  server:
    liveness:
      enabled: true
      interval: 5s
      timeout: 45s
      initialDelay: 45s
      heartbeatInterval: 3s

For Kafka deployment-mode (Enterprise Edition):

yaml
kestra:
  server:
    liveness:
      timeout: 1m
      initialDelay: 1m
For Kestra versions prior to 0.16.0

Heartbeat Frequency

The interval at which a Worker will send a heartbeat indicating its current state can be configured using the kestra.heartbeat.frequency configuration.

TypeDuration
Default10s

Heartbeat Missed

The number of missed heartbeats before Executors will consider a Worker as DEAD can be configured using the kestra.heartbeat.heartbeatMissed configuration.

TypeInteger
Default3

Worker Task Restart Strategy

Starting with Kestra 0.16.0, you can configure the strategy to be used by Executors when a Worker is detected as unhealthy regarding uncompleted tasks (JDBC deployment mode).

kestra.server.workerTaskRestartStrategy

The strategy to be used for restarting uncompleted tasks in the event of a worker failure.

Supported strategies are:

  • NEVER:

Tasks will never be restarted in the event of a worker failure (i.e., tasks are run at most once).

  • IMMEDIATELY:

Tasks will be restarted immediately in the event of a worker failure, (i.e., as soon as a worker is detected as DISCONNECTED). This strategy can be used to reduce task recovery times at the risk of introducing duplicate executions (i.e., tasks are run at least once).

  • AFTER_TERMINATION_GRACE_PERIOD:

Tasks will be restarted on worker failure after the kestra.server.terminationGracePeriod. This strategy should prefer to reduce the risk of task duplication (i.e., tasks are run exactly once in the best effort).

TypeString
DefaultAFTER_TERMINATION_GRACE_PERIOD
Valid values:[ NEVER, IMMEDIATELY, AFTER_TERMINATION_GRACE_PERIOD ]

Termination Grace Period

When a Kestra Server receives a SIGTERM signal it will immediately try to stop gracefully.

Starting with Kestra 0.16.0, you can configure the termination grace period for each Kestra Server. The termination grace period defines the allowed period for a server to stop gracefully.

kestra.server.terminationGracePeriod

The expected time for the server to complete all its tasks before shutting down.

TypeDuration
Default5m

Internal Storage

Using the kestra.storage configuration, you can set up the desired internal storage type for Kestra.

The default internal storage implementation is the local storage which is not suitable for production as it will store data in a local folder on the host filesystem.

This local storage can be configured as follows:

yaml
kestra:
  storage:
    type: local
    local:
      basePath: /tmp/kestra/storage/ # your custom path

Other internal storage types include:

S3

First, make sure that the S3 storage plugin is installed in your environment. You can install it with the following Kestra command: ./kestra plugins install io.kestra.storage:storage-s3:LATEST. This command will download the plugin's jar file into the plugin's directory.

Then, enable the storage using the following configuration:

yaml
kestra:
  storage:
    type: s3
    s3:
      endpoint: "<your-s3-endpoint>" # Only needed if you host your own S3 storage
      accessKey: "<your-aws-access-key-id>"
      secretKey: "<your-aws-secret-access-key>"
      region: "<your-aws-region>"
      bucket: "<your-s3-bucket-name>"
      forcePathStyle: "<true|false>" # optional, defaults to false, useful if you mandate domain resolution to be path-based due to DNS for eg.

If you are using an AWS EC2 or EKS instance, you can use the default credentials provider chain. In this case, you can omit the accessKey and secretKey options:

yaml
kestra:
  storage:
    type: s3
    s3:
      region: "<your-aws-region>"
      bucket: "<your-s3-bucket-name>"

Additional configurations can be found here.

Assume IAM Role - AWS Security Token Service (STS)

Minio

If you use Minio or similar S3-compatible storage options, you can follow the same process as shown above to install the Minio storage plugin. Then, make sure to include the Minio's endpoint and port in the storage configuration:

yaml
kestra:
  storage:
    type: minio
    minio:
      endpoint: "<your-endpoint>"
      port: "<your-port>"
      accessKey: "<your-accessKey>"
      secretKey: "<your-secretKey>"
      region: "<your-region>"
      secure: "<your-secure>"
      bucket: "<your-bucket>"
      partSize: "<your-part-size>" # syntax: <number><unit> (KB, MB, GB), defaults to 5MB

Optionally and if the Minio configured is configured to do so (MINIO_DOMAIN=my.domain.com environment variable on Minio server), you can also use the kestra.storage.minio.vhost: true property to make Minio client to use the virtual host syntax.

Please note that the endpoint should always be your base domain (even if you use the virtual host syntax). In the above example, endpoint: my.domain.com, bucket: my-bucket. Setting endpoint: my-bucket.my.domain.com will lead to failure.

Azure

First, install the Azure storage plugin. To do that, you can leverage the following Kestra command: ./kestra plugins install io.kestra.storage:storage-azure:LATEST. This command will download the plugin's jar file into the plugins directory.

Adjust the storage configuration shown below depending on your chosen authentication method:

yaml
kestra:
  storage:
    type: azure
    azure:
      endpoint: "https://unittestkt.blob.core.windows.net"
      container: storage
      connectionString: "<connection-string>"
      sharedKeyAccountName: "<shared-key-account-name>"
      sharedKeyAccountAccessKey: "<shared-key-account-access-key>"
      sasToken: "<sas-token>"

GCS

You can install the GCS storage plugin using the following Kestra command: ./kestra plugins install io.kestra.storage:storage-gcs:LATEST. This command will download the plugin's jar file into the plugins directory.

Then, you can enable the storage using the following configuration:

yaml
kestra:
  storage:
    type: gcs
    gcs:
      bucket: "<your-bucket-name>"
      projectId: "<project-id or use default projectId>"
      serviceAccount: "<serviceAccount key as JSON or use default credentials>"

If you haven't configured the kestra.storage.gcs.serviceAccount option, Kestra will use the default service account, which is:

  • the service account defined on the cluster (for GKE deployments)
  • the service account defined on the compute instance (for GCE deployments).

You can also provide the environment variable GOOGLE_APPLICATION_CREDENTIALS with a path to a JSON file containing GCP service account key.

You can find more details in the GCP documentation.

System Flows

By default, the system namespace is reserved for System Flows. These background workflows are intended to perform routine tasks such as sending alerts and purging old logs. If you want to overwrite the name used for System Flows, use the kestra.system-flows configuration:

yaml
kestra:
  systemFlows:
    namespace: system

Tasks

Using the kestra.tasks configuration, you can set up multiple task-specific features.

Task Default Configuration

You can set defaults for specific tasks using the kestra.tasks.defaults configuration. These defaults will be applied to all tasks on your cluster if a property is not defined on flows or tasks.

You can use this to isolate tasks in containers, such as scripting tasks. For Bash tasks and other script tasks in the core, we advise you to force io.kestra.plugin.scripts.runner.docker.Docker isolation and to configure global cluster pluginDefaults:

yaml
kestra:
  plugins:
    defaults:
      - type: io.kestra.plugin.scripts.shell.Commands
        forced: true
        values:
          containerImage: ubuntu:latest
          taskRunner:
            type: io.kestra.plugin.scripts.runner.docker.Docker

Volume Enabled for Docker Task Runner

Volumes mount are disabled by default for security reasons, you can enabled it with this configurations:

yaml
kestra:
  plugins:
    configurations:
      - type: io.kestra.plugin.scripts.runner.docker.Docker
        values:
          volumeEnabled: true

Temporary storage configuration

Kestra writes temporary files during task processing. By default, files will be created on /tmp, but you can change the location with this configuration:

yaml
kestra:
  tasks:
    tmpDir:
      path: /home/kestra/tmp

Note: The tmpDir path must be aligned to the volume path otherwise Kestra will not know what directory to mount for the tmp directory.

yaml
volumes:
  - kestraData:/app/storage
  - /var/run/docker.sock:/var/run/docker.sock
  - /home/kestra:/home/kestra

In this example, /home/kestra:/home/kestra matches the tasks tmpDir field.

Tutorial Flows

Tutorial flows are used to help users understand how Kestra works. They are used in the Guided Tour that allows you to select your use case and see how Kestra can help you solve it. You can disable the tutorial flows in production using the kestra.tutorialFlows configuration:

yaml
kestra:
  tutorialFlows:
    enabled: false

Disable Tutorial Flows

To disable the tutorial flows, set the tutorialFlows property to false in your configuration file.

yaml
kestra:
  tutorialFlows:
    enabled: false # true by default

The tutorial flows are included in the open-source edition of Kestra by default. It's recommended to set that property to false in production environments to avoid unnecessary flows from being loaded into the production system.

Enabling Templates

Templates are marked as deprecated and disabled by default starting from the 0.11.0 release. You can re-enable them with the kestra.templates configuration:

yaml
kestra:
  templates:
    enabled: true

Kestra URL

Some notification services require a URL configuration defined in kestra.url in order to add links from the alert message. Use a full URI here with a trailing / (without ui or api).

yaml
kestra:
  url: https://www.my-host.com/kestra/

Variables

Using the kestra.variables configuration, you can determine how variables are handled in Kestra.

Environment Variables Prefix

Kestra provides a way to use environment variables in your flow. By default, Kestra will only look at environment variables that start with KESTRA_. You can change this prefix by setting the kestra.variables.envVarsPrefix configuration option:

yaml
kestra:
  variables:
    envVarsPrefix: KESTRA_

These variables will be accessible in a flow with {{ envs.your_env }} in lowercase without the prefix.

For example, an environment variable with the name KESTRA_MY_ENV can be accessed using {{ envs.my_env }}.

Global Variables

You can also set global variables directly in the kestra.variables.globals configuration. These variables will be accessible in all flows across the instance.

For example, the following variable will be accessible in a flow using {{ globals.host }}:

yaml
kestra:
  variables:
    globals:
      host: pg.db.prod

Keep in mind that if a variable is in camel case, it will be transformed into hyphenated case. For example, the global variable shown below will be accessible in flows with {{ globals['myVar'] }} or {{ globals['environment-name'] }}:

yaml
kestra:
  variables:
    globals:
      environment_name: dev
      myVar: my variable

Recursive Rendering

The kestra.variables.recursiveRendering configuration allows you to enable the pre-0.14.0 recursive rendering behavior and give administrators more time to migrate deployed flows. It defaults to false:

yaml
kestra:
  variables:
    recursiveRendering: true

The rendering of template variables can be CPU intensive, and by default we enable a cache of "templates". You can disable it using the kestra.variables.cacheEnabled configuration:

yaml
kestra:
  variables:
    cacheEnabled: false

We recommend keeping the cache enabled, as it can improve the performance.

Cache Size

The rendering of template variables cache is an LRU cache (keeps most commonly used variables) and will be cached in memory (default 1000). You can change the size of the template cache (in number of templates) using the kestra.variables.cacheSize configuration.

yaml
kestra:
  variables:
    cacheSize: 1000

Keep in mind that the higher this number will be, the more memory the server will use.

Webserver

Using the kestra.webserver configuration, you can adjust the settings of the Kestra webserver.

Google Analytics ID

Using the kestra.webserver.googleAnalytics configuration, you can add a Google Analytics tracking ID to report all page tracking. Here is an example of how you can add your Google Analytics tracking ID:

yaml
kestra:
  webserver:
    googleAnalytics: UA-12345678-1

Append HTML tags to the webserver application

With the help of the kestra.webserver.htmlHead configuration, you can append HTML tags to the webserver application. This can bw used to inject CSS or JavaScript to customize the web application.

For example, here is how you can add a red banner in production environments:

yaml
kestra:
  webserver:
    htmlHead: |
      <style type="text/css">
        .v-sidebar-menu .logo:after {
          background: var(--danger);
          display: block;
          content: "Local";
          position: relative;
          textTransform: uppercase;
          bottom: -65px;
          textAlign: center;
          color: var(--white-always);
        }
      </style>

Was this page helpful?
