Configure authentik SSO
Available on: Enterprise EditionCloud
Set up authentik SSO to manage authentication for users.
In conjunction with SSO, check out the authentik SCIM provisioning guide.
authentik SSO Setup
Install authentik

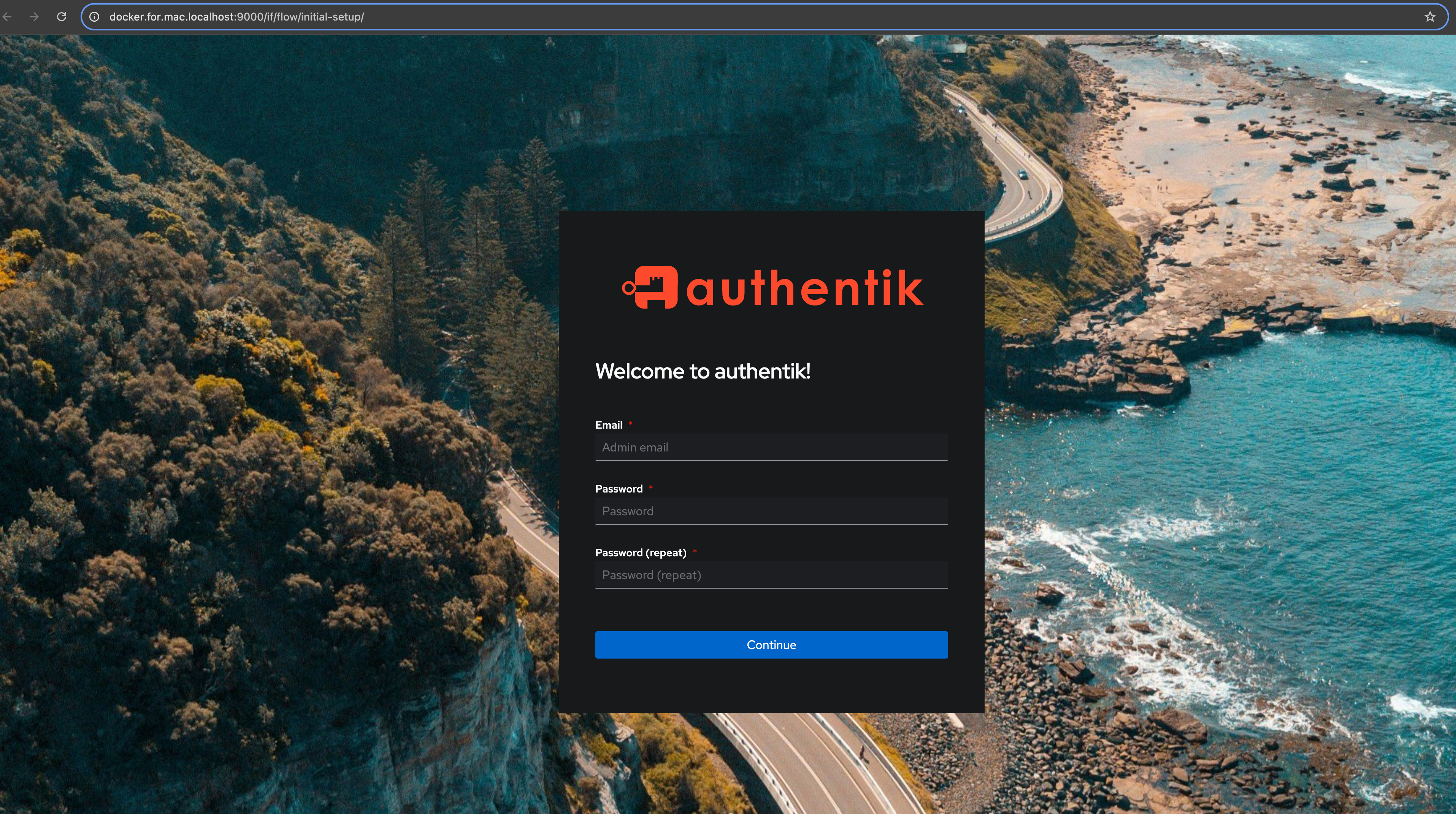

Authentik provides a simple docker-compose installer for testing purposes. Follow the instructions and click on the initial setup URL to create your first user.
Create Application and SSO Provider in authentik

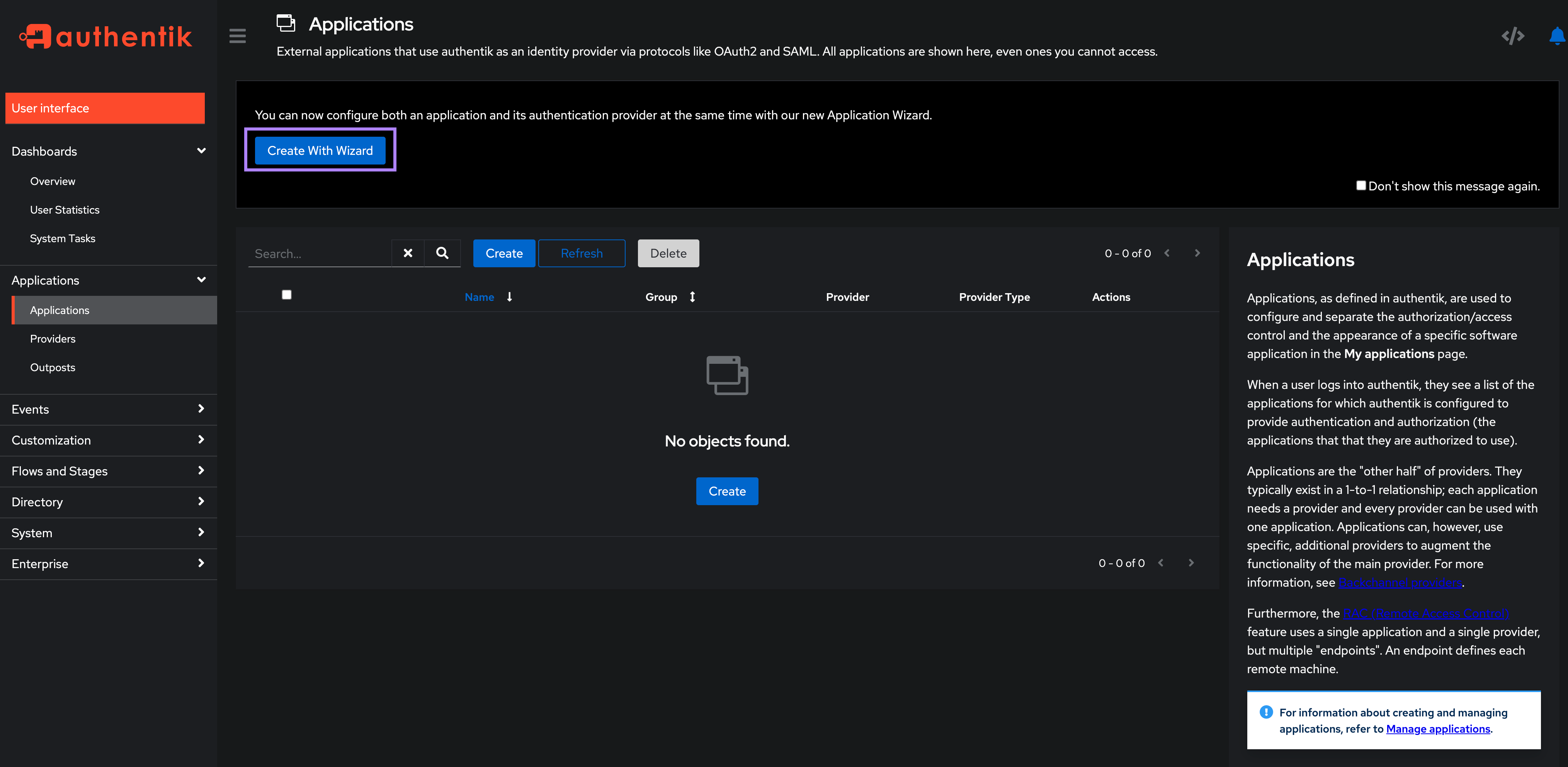

On the left-hand side, select Applications → Applications. For simplicity, we’ll use the Create with Wizard button, as this will create both an application and a provider.

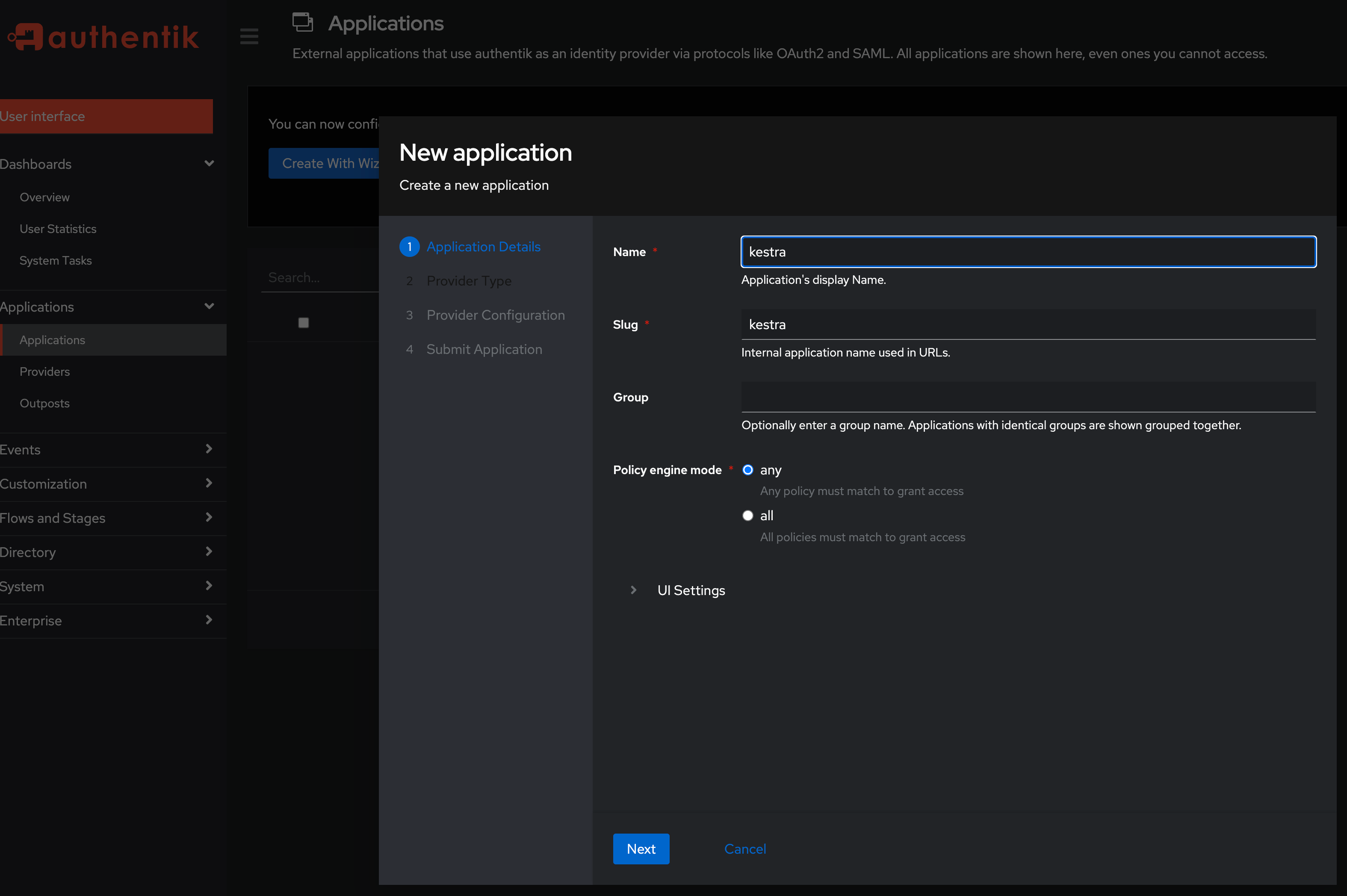

On the Application Details screen, fill in the application name
and slug
. Set both here to kestra
and click Next
.

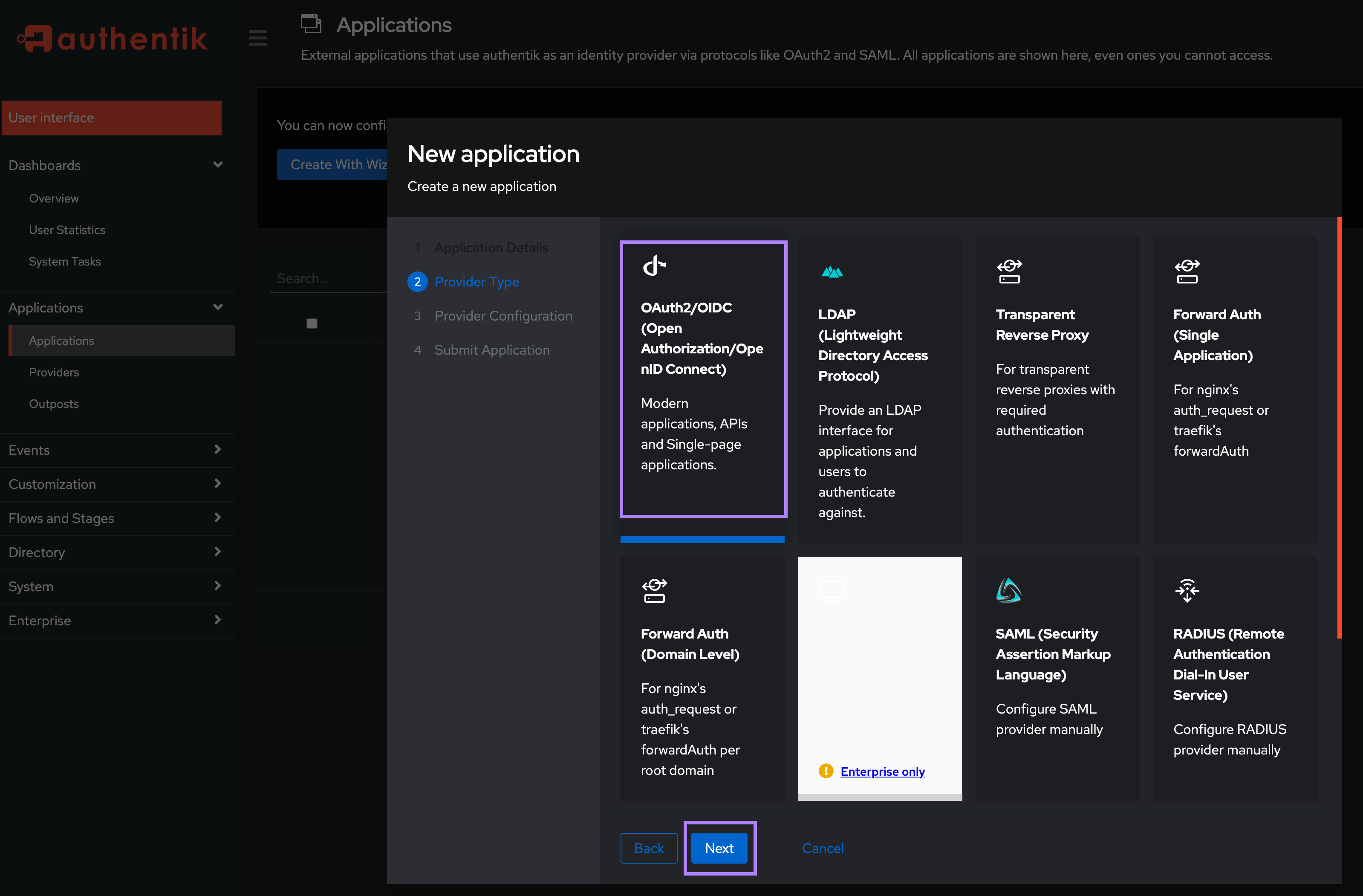

On the Provider Type screen, select OAuth2/OIDC and click Next.

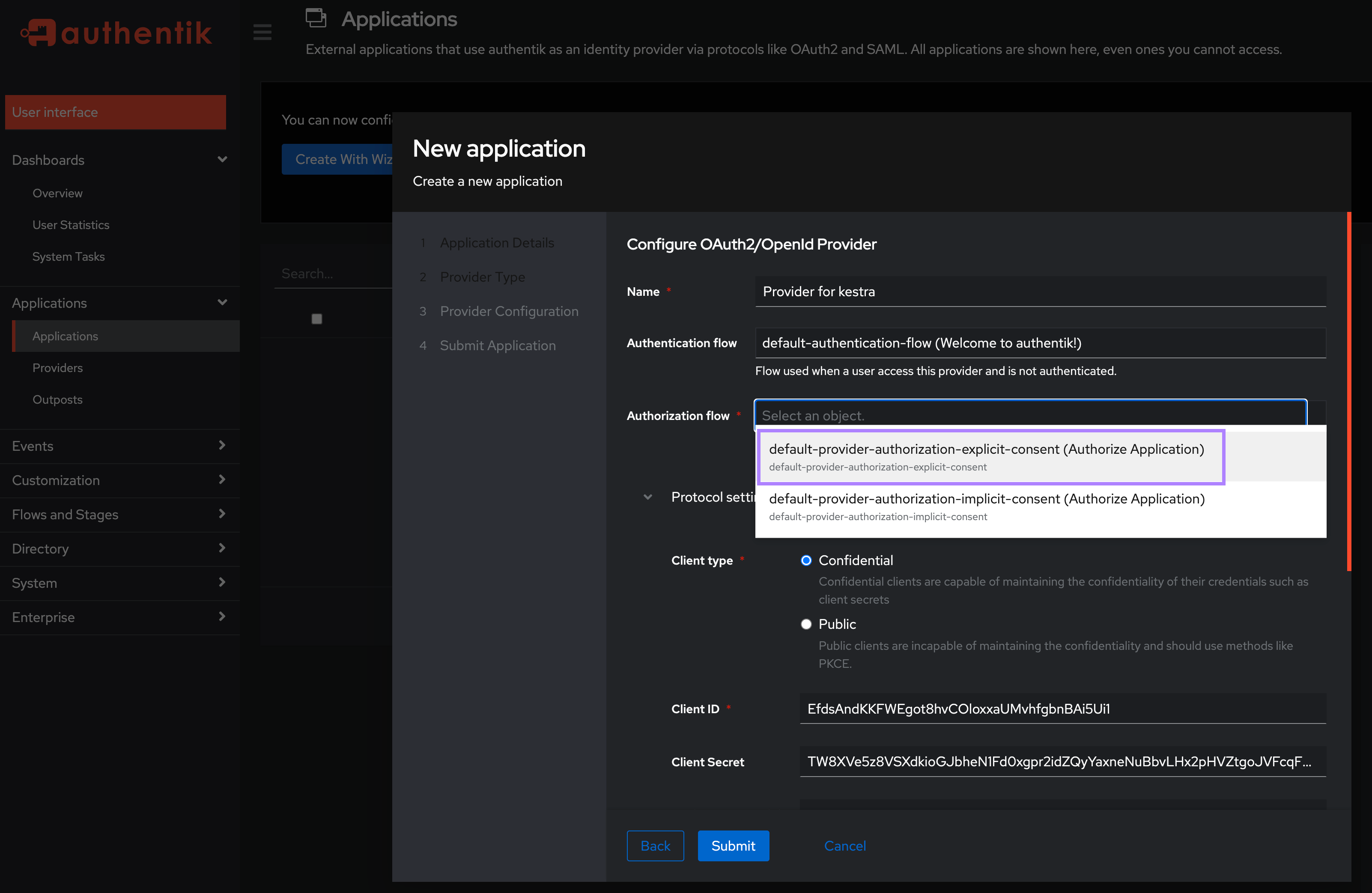

On the Provider Configuration screen:
- In the Authentication flow field, select “default-authentication-flow (Welcome to authentik!)”.
- In the Authorization flow field, select “default-provider-authorization-explicit-consent (Authorize Application)”.
- Keep the Client type as Confidential. Under the Redirect URIs/Origins (RegEx), enter your Kestra host's
/oauth/callback/authentik
endpoint in the formathttp://<kestra_host>:<kestra_port>/oauth/callback/authentik
(e.g., http://localhost:8080/oauth/callback/authentik) and thenSubmit
the Application.
Note the Client ID
and Client Secret
as you will need these to configure Kestra in the next step.
Configure Authentik SSO in Kestra Settings
With the above Client ID and Secret, add the following in the micronaut
configuration section:
micronaut:
security:
oauth2:
enabled: true
clients:
authentik:
clientId: "CLIENT_ID"
clientSecret: "CLIENT_SECRET"
openid:
issuer: "http://localhost:9000/application/o/kestra/"
You may need to adjust the above issuer
URL if you named your application something other than kestra
. Make sure to update that URL to match your application name http://localhost:9000/application/o/<application_name>/
.
Configure a Default Role for your SSO users in Kestra Settings
To ensure that your SSO users have initial permissions within the Kestra UI, set up a default role for them. Achieve this by adding the following configuration under the kestra.security
section:
kestra:
security:
defaultRole:
name: default_admin_role
description: "Default Admin Role"
permissions:
NAMESPACE: ["CREATE", "READ", "UPDATE", "DELETE"]
ROLE: ["CREATE", "READ", "UPDATE", "DELETE"]
GROUP: ["CREATE", "READ", "UPDATE", "DELETE"]
EXECUTION: ["CREATE", "READ", "UPDATE", "DELETE"]
AUDITLOG: ["CREATE", "READ", "UPDATE", "DELETE"]
USER: ["CREATE", "READ", "UPDATE", "DELETE"]
BINDING: ["CREATE", "READ", "UPDATE", "DELETE"]
FLOW: ["CREATE", "READ", "UPDATE", "DELETE"]
SECRET: ["CREATE", "READ", "UPDATE", "DELETE"]
BLUEPRINT: ["CREATE", "READ", "UPDATE", "DELETE"]
INFRASTRUCTURE: ["CREATE", "READ", "UPDATE", "DELETE"]
KVSTORE: ["CREATE", "READ", "UPDATE", "DELETE"]
ee:
tenants:
enabled: true
defaultTenant: false
⚠️ Make sure that your defaultRole
is added under the kestra.security
section, not under micronaut.security
. Also, ensure that the defaultRole
has the necessary permissions for your users to interact with Kestra. The above configuration is just an example and you might want to restrict the permissions boundaries for production use.
