Automate Kestra Flow Deployment with Azure DevOps Pipelines

For the complete documentation index, see llms.txt. For a full content snapshot, see llms-full.txt. Append .md to any kestra.io/docs/* URL for plain Markdown.

How to use Azure DevOps to create a CI/CD pipeline for your Kestra flows.

Automate Kestra deployments with Azure DevOps

Azure Pipelines can validate and deploy your Kestra flows on every change to your repository. This page shows two approaches: kestractl, the command-line client for the Kestra API, and the Kestra Terraform provider.

Deploy flows with kestractl

This azure-pipelines.yml runs on every push to main. It installs kestractl, validates the flows in the flows/ directory, and deploys them to the prod namespace:

trigger:
branches:
include:
- main
pool:
vmImage: ubuntu-latest
variables:
KESTRACTL_HOST: https://kestra.example.com
steps:
- script: curl -fsSL https://raw.githubusercontent.com/kestra-io/kestractl/main/install-scripts/install.sh | INSTALL_DIR=$(Agent.TempDirectory) bash
displayName: Install kestractl
- script: $(Agent.TempDirectory)/kestractl flows validate flows/
displayName: Validate flows
env:
KESTRACTL_TOKEN: $(KESTRACTL_TOKEN)
- script: $(Agent.TempDirectory)/kestractl flows deploy flows/ --namespace prod --override --fail-fast
displayName: Deploy flows
env:
KESTRACTL_TOKEN: $(KESTRACTL_TOKEN)
  • flows validate checks each flow against your Kestra instance and fails the step if any flow is invalid.
  • flows deploy creates the flows, and --override updates flows that already exist. --namespace prod deploys every flow to prod; omit it to keep the namespace written in each flow file.
  • The agent must be able to reach your Kestra instance. For a Kestra instance on a private network, use a self-hosted agent.

Configure credentials

kestractl reads its settings from KESTRACTL_* environment variables. Pipeline variables such as KESTRACTL_HOST are passed to scripts automatically, but secret variables aren’t, so map them in each step’s env, as the example does for KESTRACTL_TOKEN.

In the pipeline’s Variables settings, add KESTRACTL_TOKEN with an API token (Enterprise Edition and Cloud) and select Keep this value secret. In Open-Source, add KESTRACTL_USERNAME and KESTRACTL_PASSWORD instead, and map both in env. To target a tenant other than main, set KESTRACTL_TENANT.

Deploy flows with Terraform

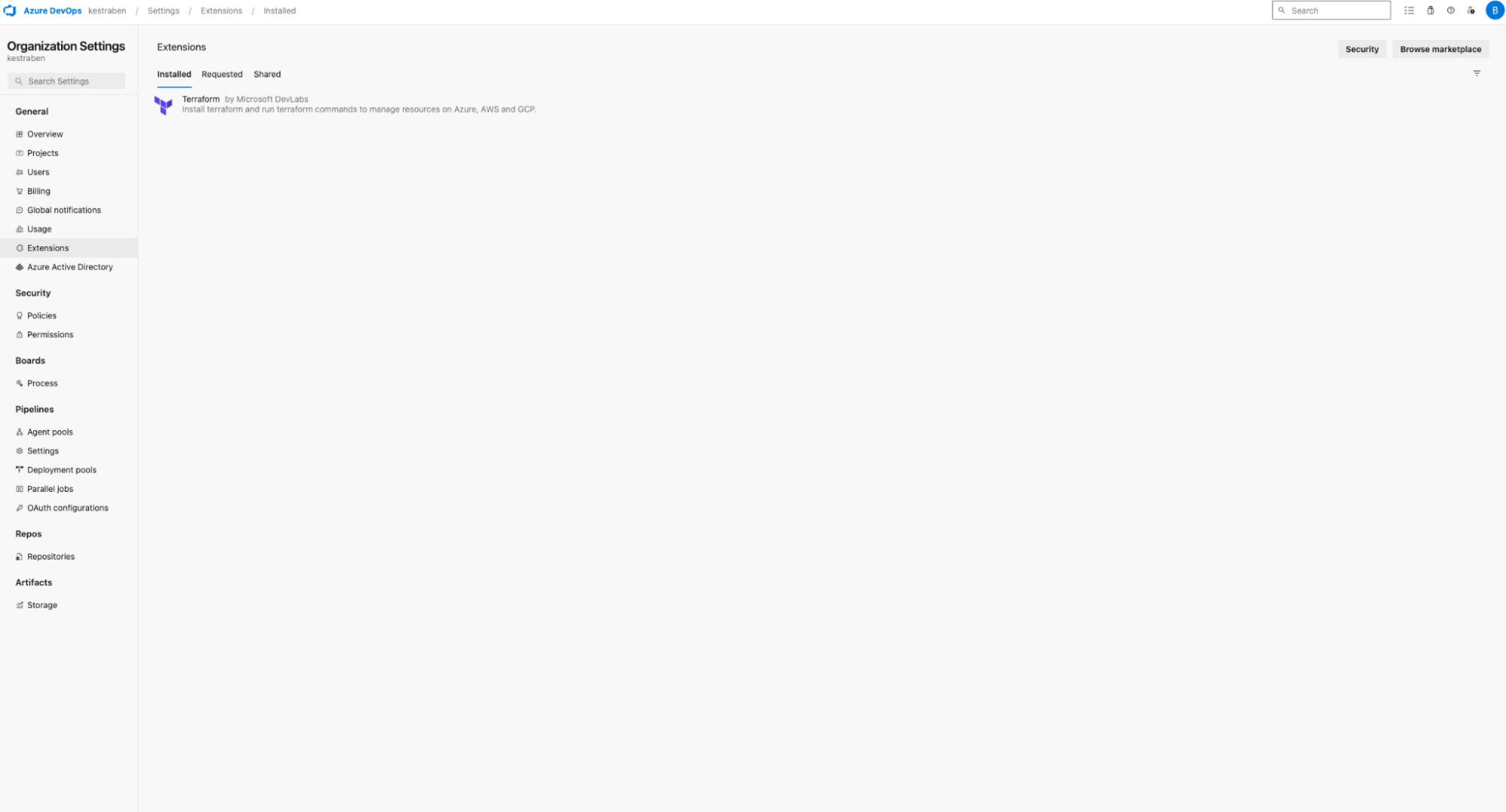

If you manage Kestra resources with the Kestra Terraform provider, run Terraform from the pipeline. This example uses the Terraform extension, which you install from Organization Settings > Extensions, and stores the Terraform state in an S3 bucket:

trigger:
branches:
include:
- main
pool:
vmImage: ubuntu-latest
stages:
- stage: deploy
jobs:
- job: terraform
steps:
- task: TerraformInstaller@1
inputs:
terraformVersion: 'latest'
- task: TerraformTaskV4@4
inputs:
provider: 'aws'
command: 'init'
backendServiceAWS: 'aws_s3'
backendAWSBucketName: '<your-state-bucket>'
backendAWSKey: 'kestra-tf'
- task: TerraformTaskV4@4
inputs:
provider: 'aws'
command: 'validate'
- task: TerraformTaskV4@4
inputs:
provider: 'aws'
command: 'apply'
environmentServiceNameAWS: 'aws_s3'

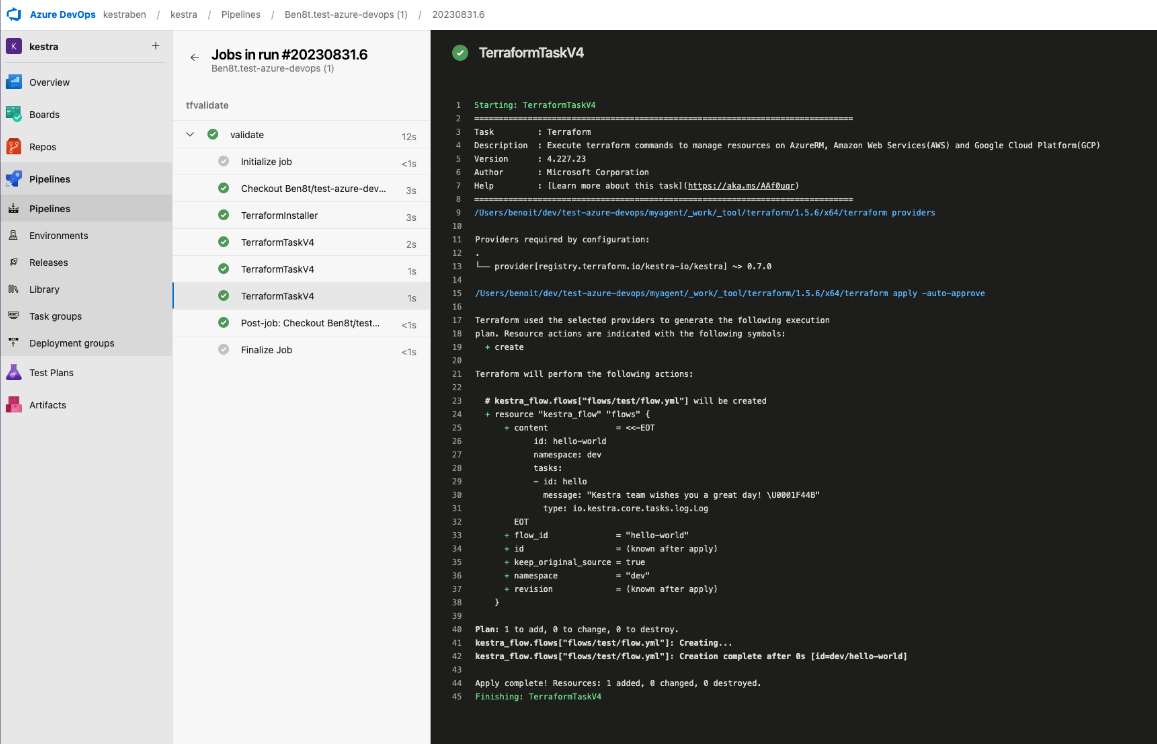

  1. TerraformInstaller@1 installs Terraform on the agent.
  2. The first TerraformTaskV4@4 task runs init. This example keeps the state in AWS S3 through the aws_s3 service connection; the extension also supports Azure and Google Cloud backends.
  3. The second task runs validate to check the configuration.
  4. The last task runs apply to create or update the Kestra resources.

For the provider configuration and flow resources, see Terraform.
