DocsHow-to GuidesRun Python inside of your Flows

Run Python inside of your Flows

Run Python code directly inside of your Flows and generate outputs.

You can execute Python code inside of a flow by either writing your Python inline or by executing a .py file. You can also get outputs and metrics from your Python code too.

In this example, the flow will install the required pip packages, make an API request to fetch data and use the Python Kestra library to generate outputs and metrics using this data.

Managing Dependencies

Managing Python Dependencies can be frustrating. There's 3 ways you can manage your dependencies in Kestra:

Install with pip using beforeCommands
Set Container Image with Docker Task Runner
Build Docker Image and set it with Docker Task Runner

For more information, check out the dedicated guide here.

If you want to write a short amount of Python to perform a task, you can use the io.kestra.plugin.scripts.python.Script type to write it directly inside of your flow configuration. This allows you to keep everything in one place.

yaml

id: python_scripts
namespace: company.team

description: This flow will install the pip package in a Docker container, and use kestra's Python library to generate outputs (number of downloads of the Kestra Docker image) and metrics (duration of the script).

tasks:
  - id: outputs_metrics
    type: io.kestra.plugin.scripts.python.Script
    beforeCommands:
      - pip install requests
    taskRunner:
      type: io.kestra.plugin.scripts.runner.docker.Docker
    containerImage: python:slim
    warningOnStdErr: false
    script: |
      import requests

      def get_docker_image_downloads(image_name: str = "kestra/kestra"):
          """Queries the Docker Hub API to get the number of downloads for a specific Docker image."""
          url = f"https://hub.docker.com/v2/repositories/{image_name}/"
          response = requests.get(url)
          data = response.json()

          downloads = data.get('pull_count', 'Not available')
          return downloads

      downloads = get_docker_image_downloads()

Commands

If you would prefer to put your Python code in a .py file (e.g. your code is much longer or spread across multiple files), you can run the previous example using the io.kestra.plugin.scripts.python.Commands type:

yaml

id: python_commands
namespace: company.team

description: This flow will install the pip package in a Docker container, and use kestra's Python library to generate outputs (number of downloads of the Kestra Docker image) and metrics (duration of the script).

tasks:
  - id: outputs_metrics
    type: io.kestra.plugin.scripts.python.Commands
    namespaceFiles:
      enabled: true
    taskRunner:
      type: io.kestra.plugin.scripts.runner.docker.Docker
    containerImage: python:slim
    warningOnStdErr: false
    beforeCommands:
      - pip install requests
    commands:
      - python outputs_metrics.py

You'll need to add your Python code using the Editor or sync it using Git so Kestra can see it. You'll also need to set the enabled flag for the namespaceFiles property to true so Kestra can access the file.

You can read more about the Commands type in the Plugin documentation.

Handling Outputs

If you want to get a variable or file from your Python code, you can use an output.

You'll need to install the kestra python module in order to pass your variables to Kestra.

bash

pip install kestra

Variable Output

You'll need to use the Kestra class to pass your variables to Kestra as outputs. Using the outputs method, you can pass a dictionary of variables where the key is the name of the output you'll reference in Kestra.

Using the same example as above, we can pass the number of downloads as an output.

python

from kestra import Kestra
import requests

def get_docker_image_downloads(image_name: str = "kestra/kestra"):
    """Queries the Docker Hub API to get the number of downloads for a specific Docker image."""
    url = f"https://hub.docker.com/v2/repositories/{image_name}/"
    response = requests.get(url)
    data = response.json()

    downloads = data.get('pull_count', 'Not available')
    return downloads

downloads = get_docker_image_downloads()

outputs = {
    'downloads': downloads
}

Kestra.outputs(outputs)

Once your Python file has executed, you'll be able to access the outputs in later tasks as seen below:

yaml

id: python_outputs
namespace: company.team

tasks:
  - id: outputs_metrics
    type: io.kestra.plugin.scripts.python.Commands
    namespaceFiles:
      enabled: true
    taskRunner:
      type: io.kestra.plugin.scripts.runner.docker.Docker
    containerImage: python:slim
    warningOnStdErr: false
    beforeCommands:
      - pip install requests kestra
    commands:
      - python outputs_metrics.py

  - id: log_downloads
    type: io.kestra.plugin.core.log.Log
    message: "Number of downloads: {{ outputs.outputs_metrics.vars.downloads }}"

This example works for both io.kestra.plugin.scripts.python.Script and io.kestra.plugin.scripts.python.Commands.

File Output

Inside of your Python code, write a file to the system. You'll need to add the outputFiles property to your flow and list the file you're trying to access. In this case, we want to access downloads.txt. More information on the formats you can use for this property can be found here.

The example below write a .txt file containing the number of downloads, similar the output we used earlier. We can then read the content of the file using the syntax {{ outputs.{task_id}.outputFiles['{filename}'] }}

yaml

id: python_output_files
namespace: company.team

tasks:
  - id: outputs_metrics
    type: io.kestra.plugin.scripts.python.Script
    beforeCommands:
      - pip install requests
    taskRunner:
      type: io.kestra.plugin.scripts.runner.docker.Docker
    containerImage: python:slim
    warningOnStdErr: false
    outputFiles:
      - downloads.txt
    script: |
      import requests

      def get_docker_image_downloads(image_name: str = "kestra/kestra"):
          """Queries the Docker Hub API to get the number of downloads for a specific Docker image."""
          url = f"https://hub.docker.com/v2/repositories/{image_name}/"
          response = requests.get(url)
          data = response.json()

          downloads = data.get('pull_count', 'Not available')
          return downloads

      downloads = get_docker_image_downloads()

      # Generate a file with the output
      f = open("downloads.txt", "a")
      f.write(str(downloads))
      f.close()

  - id: log_downloads
    type: io.kestra.plugin.scripts.shell.Commands
    taskRunner:
      type: io.kestra.plugin.core.runner.Process
    commands:
      - cat {{ outputs.outputs_metrics.outputFiles['downloads.txt'] }}

This example works for both io.kestra.plugin.scripts.python.Script and io.kestra.plugin.scripts.python.Commands.

Capture Logs

If your Python code needs to log something to the console, we recommend using the Kestra.logger() method from the Kestra pip package to instantiate a logger object — this logger is configured to correctly capture all Python log levels and send them to the Kestra backend.

yaml

id: python_logs
namespace: company.team

tasks:
  - id: python_logger
    type: io.kestra.plugin.scripts.python.Script
    allowFailure: true
    warningOnStdErr: false
    script: |
      import time
      from kestra import Kestra

      logger = Kestra.logger()

      logger.debug("DEBUG is used for diagnostic info.")
      time.sleep(0.5)

      logger.info("INFO confirms normal operation.")
      time.sleep(0.5)

      logger.warning("WARNING signals something unexpected.")
      time.sleep(0.5)

      logger.error("ERROR indicates a serious issue.")
      time.sleep(0.5)

      logger.critical("CRITICAL means a severe failure.")

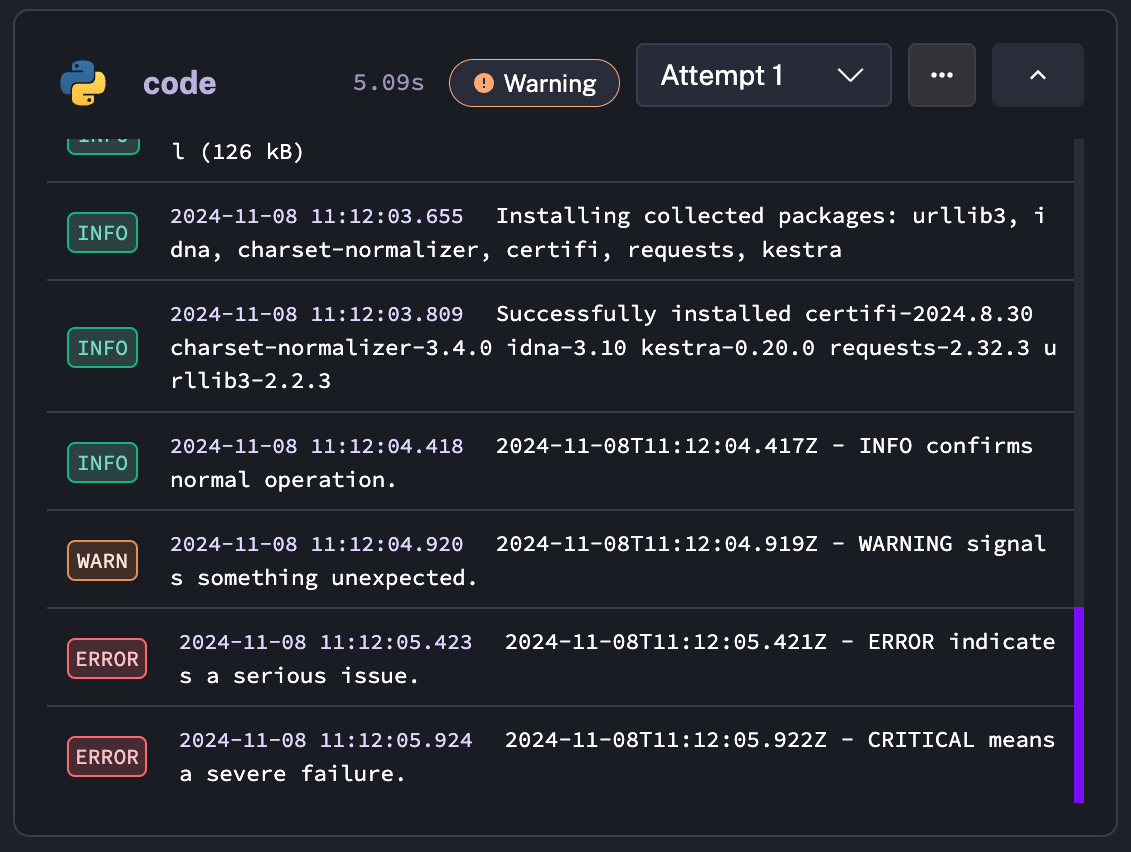

When we execute the above example, we can see Kestra correctly captures the log levels in the Logs view:

logs

You can read more about the Python Script task in the Plugin documentation

Handling Metrics

You can also get metrics from your Python code. In this example, we can use the time module to time the execution time of the function and then pass this to Kestra so it can be viewed in the Metrics tab. You don't need to modify your flow in order for this to work.

python

from kestra import Kestra
import requests
import time

start = time.perf_counter()

def get_docker_image_downloads(image_name: str = "kestra/kestra"):
    """Queries the Docker Hub API to get the number of downloads for a specific Docker image."""
    url = f"https://hub.docker.com/v2/repositories/{image_name}/"
    response = requests.get(url)
    data = response.json()

    downloads = data.get('pull_count', 'Not available')
    return downloads

downloads = get_docker_image_downloads()
end = time.perf_counter()
outputs = {
    'downloads': downloads
}

Kestra.outputs(outputs)
Kestra.timer('duration', end - start)

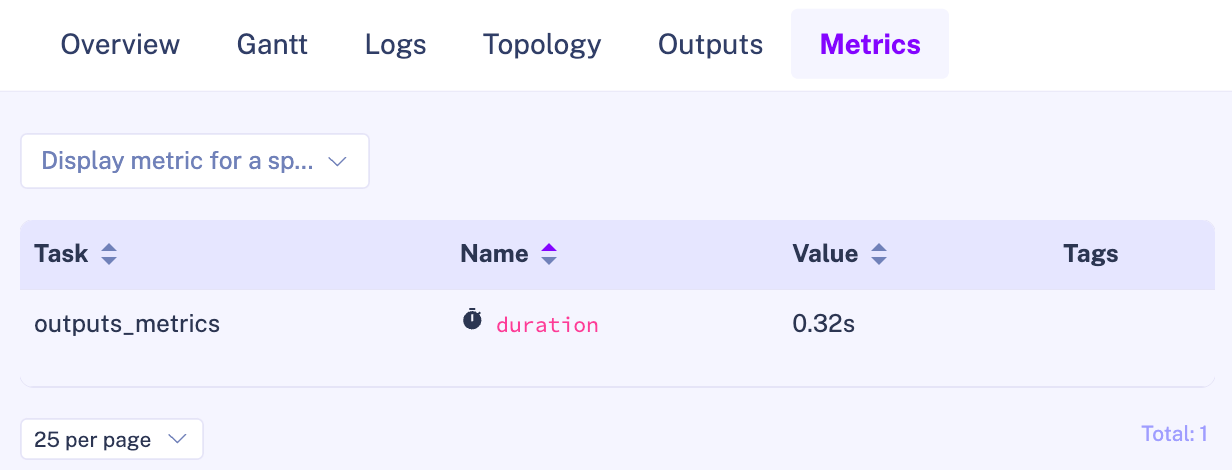

Once this has executed, duration will be viewable under Metrics. metrics

Execute Flows in Python

Inside of your Python code, you can execute flows. This is useful if you want to manage your orchestration directly in Python rather than using the Kestra flow editor. However, we recommend using Subflows to execute flows from other flows for a more integrated experience.

You can trigger a flow execution by calling the execute() method. Here is an example for the same python_scripts flow in the namespace example as above:

python

from kestra import Flow

os.environ["KESTRA_HOSTNAME"] = "http://host.docker.internal:8080" # Set this when executing this Python code inside Kestra

flow = Flow()
flow.execute('example', 'python_scripts', {'greeting': 'hello from Python'})

Read more about it on the execution page.
