Explore, Edit, and Lock Assets in the UI, API, and CLI

This reference covers the Assets pages in the UI, the dependencies graph, locking, and the API and kestractl commands that do the same work.

Most assets come from flows. Use the UI, the API, or kestractl to inspect them, to register resources that no flow manages, and to fix metadata by hand.

Assets list

Open Assets in the left navigation to list every asset you can see in the tenant. The list shows each asset’s ID, display name, type, namespace, and metadata, and you can filter it by ID, namespace, type, metadata, and lock status.

To register an asset, select Create Asset. Enter an ID, choose a type or type a custom one, and optionally set a namespace, display name, description, and metadata. Kestra rejects an ID that another asset already uses.

Assets also appear in context:

• The Assets tab of a namespace lists the assets in that namespace.
• The Assets tab of an execution lists the assets its tasks read and wrote.

Asset detail page

Select an asset to open its detail page. It has three tabs:

Use Edit to change the display name, description, namespace, type, or metadata. You can’t change the ID. To delete the asset, open the ⋮ menu and select Delete. Deleting emits a DELETED event to any EventTrigger.

Explore the dependencies graph

The Dependencies tab draws assets and flows as nodes. An edge from an asset to a flow means the flow reads the asset. An edge from a flow to an asset means the flow writes it. An edge between two assets means a task read the first and wrote the second.

Layouts

Switch between two layouts with the Tree and DAG toggle in the graph toolbar.

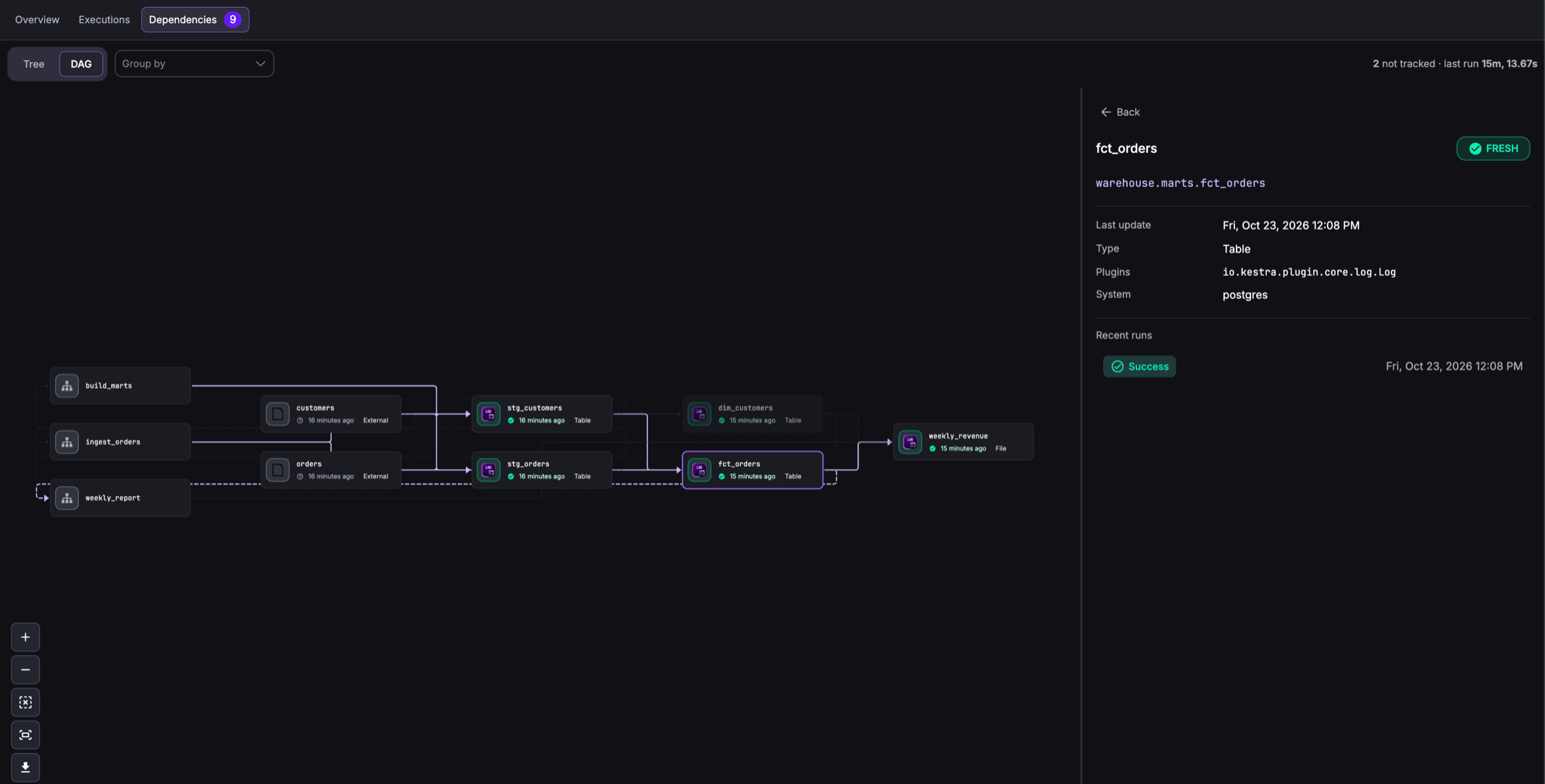

DAG places nodes left to right by dependency depth, with the flows that read and write the assets in the first column. Each asset node shows its type, how long ago it was last written, and its freshness. The layout is the same on every load, so use it for screenshots and reviews.

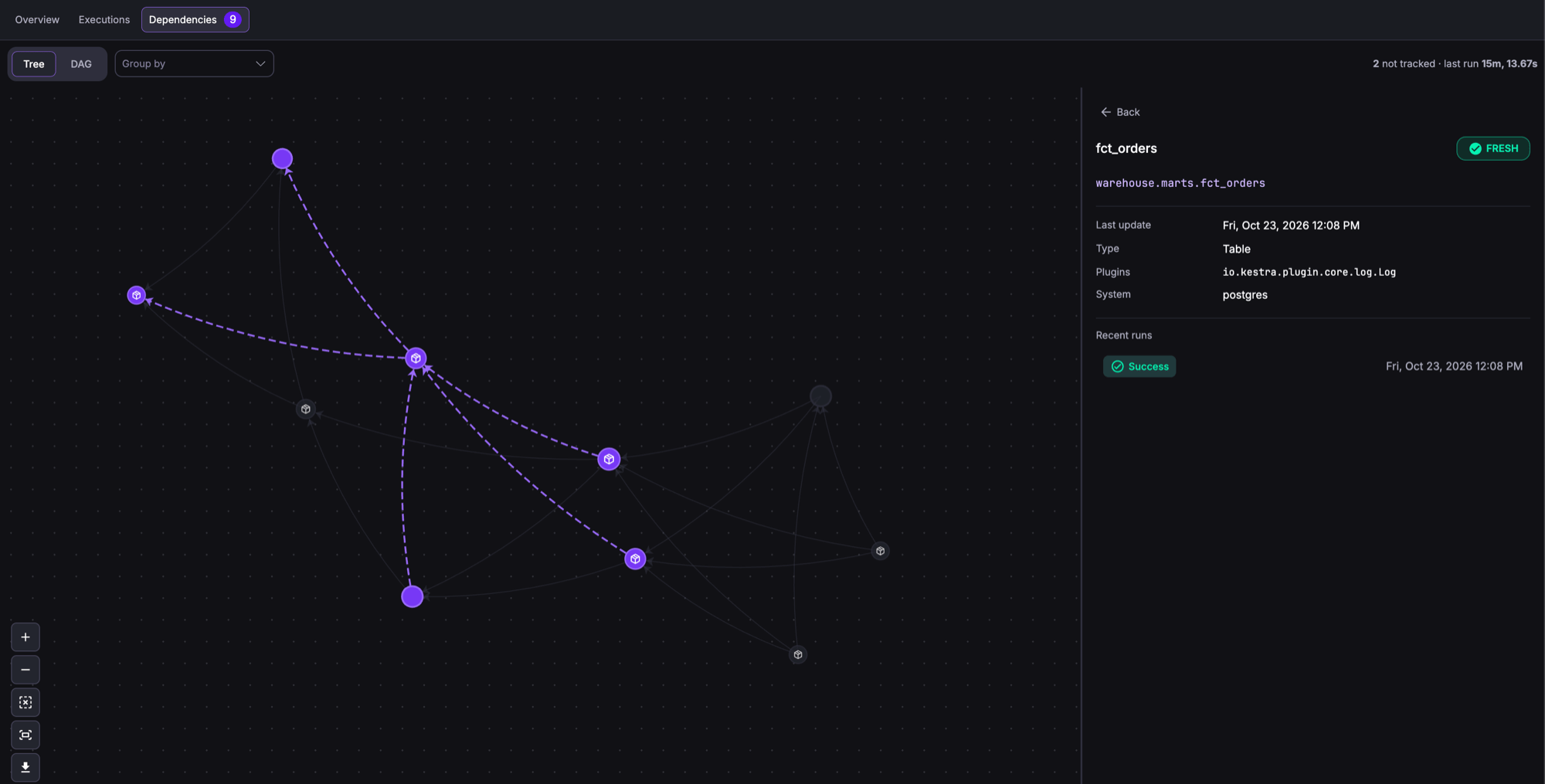

Tree uses a force-directed layout that spreads dense graphs out. It draws nodes as icons without labels, and highlights the edges connected to the selected node.

Freshness states

Each asset node shows a freshness state based on the latest execution that wrote it. A summary above the graph counts the nodes in each state.

Kestra reads the cadence from the cron expression of the producing flow’s Schedule trigger. The grace period is a quarter of the cadence, capped at two hours. Kestra can only compute a cadence for nicknames such as @daily and for crons that set only the minute and hour fields. An asset produced by a flow without a Schedule trigger, or with a cron that sets the day, month, or weekday, shows Not tracked.

These states are for display only. To act on stale assets, use FreshnessTrigger, which applies its own maxStaleness threshold.

Group by

Use Group by to cluster asset nodes:

Hover a group to fade the other nodes. Select it to keep it highlighted, and select it again or select an empty area to release it.

Node details

Select a node to open a side panel with the asset’s name and ID, its freshness state, when it was last written, its type, the task type that produced it (Plugins), its system, and its recent runs linked to their executions. Double-click a node to open its detail page.

Lock an asset

A lock blocks writes to an asset for a limited time. Reads are never blocked. Use locks to protect a resource during maintenance or while one execution changes it.

There are two kinds of lock:

To lock an asset in the UI, open the ⋮ menu on its detail page, select Lock, and choose a duration from 5 minutes to 24 hours, or Custom for any ISO 8601 duration. The detail page then shows who holds the lock and until when, with the banner You might be seeing outdated metadata as this asset is currently locked for writing. Select Unlock to release it. A user with the UNLOCK permission can release any lock, whatever its owner.

How a lock affects each write path:

Locks expire on their own. Deleting an asset also removes its lock.

Automate with the API

The Assets API is available at /api/v1/{tenant}/assets. Create and update requests take the asset as a YAML body.

For namespaced assets, the permission must cover the asset’s namespace. This request registers a table that no flow manages:

curl -X POST "https://kestra.example.com/api/v1/main/assets" \
  -H "Authorization: Bearer $KESTRA_API_TOKEN" \
  -H "Content-Type: application/x-yaml" \
  --data-binary @- <<'EOF'
id: finance.general_ledger
namespace: company.finance
type: io.kestra.plugin.ee.assets.Table
displayName: General ledger
metadata:
  system: oracle
  owner: finance-platform
EOF

For request and response schemas, see the Enterprise API reference.

Automate with kestractl

kestractl assets wraps the same endpoints:

# Register an asset from a YAML file
kestractl assets create --file general-ledger.yaml

# Inspect assets and their dependencies
kestractl assets list --output json
kestractl assets get finance.general_ledger
kestractl assets dependencies finance.general_ledger --expand-all

# Delete assets
kestractl assets delete finance.general_ledger
kestractl assets delete-by-query --namespace company.finance --purge

See kestractl assets commands for every command and flag.

Permissions

Asset access uses the ASSET RBAC resource with the actions VIEW, LIST, CREATE, UPDATE, DELETE, LOCK, and UNLOCK. Namespace-scoped grants apply to assets in those namespaces. Global assets aren’t restricted by namespace. See the ASSET permissions reference.
